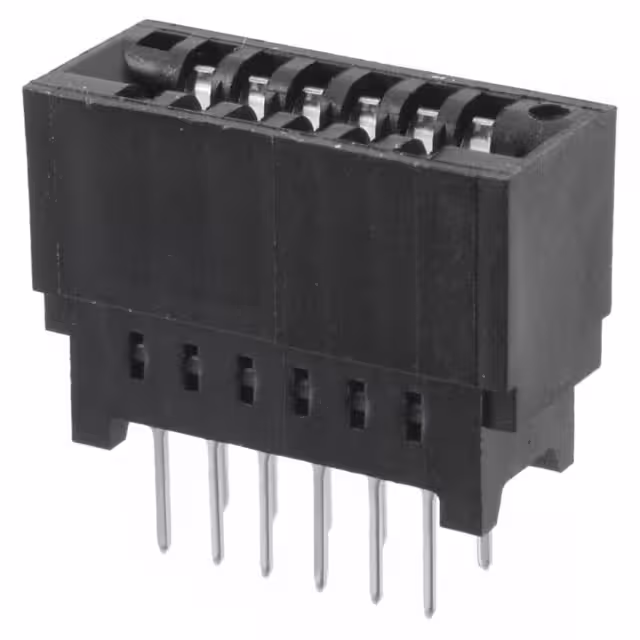

650207-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Connector Type :

CARD EDGE CONNECTOR

JESD-609 Code :

e3

HTS Code :

8536.69.40.40

Reliability :

COMMERCIAL

Insulation Material :

GLASS FILLED POLYESTER

Insulation Resistance :

5000000000Ohm

Option :

GENERAL PURPOSE

Reach Compliance Code :

Compliant

Plating Thickness :

30u inch

Total Number of Contacts :

12

Number Of PCB Rows :

2

Body Depth :

0.61 inch

Body Breadth :

0.368 inch

Number of Conductors :

ONE

Contact Gender :

FEMALE

Terminal Length :

0.125 inch

Operating Temperature (Max) :

85°C

Insulator Color :

Black

Body/Shell Style :

Receptacle

Body Length or Diameter :

1.035 inch

PCB Contact Row Spacing :

6.096 mm

Rated Current (Signal) :

3A

RoHS Status :

Non-RoHS Compliant

MIL Conformance :

No

Insertion Force-Max :

1.668 N

Reference Standard :

UL, CSA

Termination Type :

Solder

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Filter Feature :

No

ECCN Code :

EAR99

DIN Conformance :

No

Mating Contact Row Spacing :

0.25 inch

Contact Finish - Mating :

GOLD (30) OVER NICKEL

Operating Temperature (Min) :

-55°C

Mating Contact Pitch :

0.125 inch

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Dielectric Withstanding Voltage :

1500VAC V

Terminal Pitch :

3.18mm

Number of Rows :

2

Contact Style :

BELLOWED TYPE

Mixed Contacts :

No

Mounting Type :

BOARD

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Mounting Style :

Straight

Withdrawl Force-Min :

.278 N

Contact Material :

Phosphor Bronze

Additional Feature :

AMP

Contact Resistance :

10MOhm
