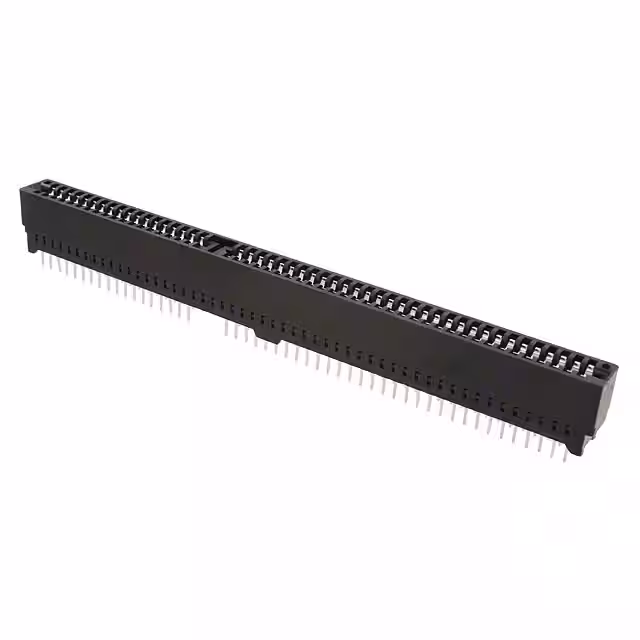

650616-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Min Operating Temperature :

-55°C

Body/Shell Style :

Receptacle

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Rated Current (Signal) :

3A

Housing Material :

Polyester

Plating Thickness :

30μin

Card Thickness :

1.778mm

Pitch :

2.54mm

Contact Style :

BELLOWED TYPE

Filter Feature :

No

Color :

Black

PCB Mounting Orientation :

Vertical

Gender :

FEMALE

Insulation Material :

Glass

Number of Positions :

98

Body Length or Diameter :

5.46 inch

Number of Contacts :

104

Underplate Material :

Nickel

Additional Feature :

AMP

DIN Conformance :

No

Lead Length :

4.75mm

Termination :

Solder

Contact Plating :

Tin, Gold

Lead Pitch :

2.54mm

Length - Termination :

0.187 inch

Reliability :

COMMERCIAL

UL Flammability Code :

94V-0

Contact Material :

Bronze

JESD-609 Code :

e3

Body Breadth :

0.368 inch

Contact Pattern :

RECTANGULAR

Flammability Rating :

UL94 V-0

Max Operating Temperature :

85°C

Radiation Hardening :

No

Pbfree Code :

No

IEC Conformance :

No

Mount :

Through Hole

MIL Conformance :

No

ELV :

Compliant

Insulation Resistance :

5000000000Ohm

Number of Rows :

2

Lead Free :

Contains Lead

RoHS Status :

Non-RoHS Compliant

Body Depth :

0.61 inch

Connector Type :

CARD EDGE CONNECTOR

Number of Conductors :

ONE
