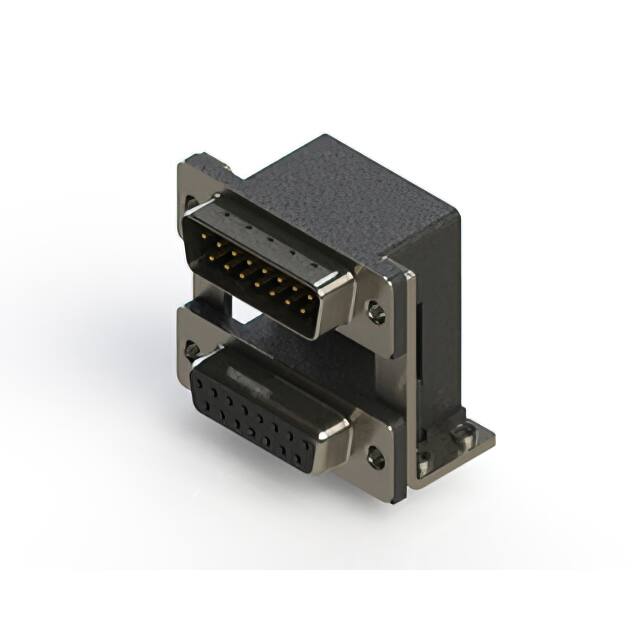

663-015-364-05C
Or copy the link below:
- Mfr.Part #
- 663-015-364-05C
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG/RCPT 15P R/A SLD
- Stock
- 16,158
- In Stock ：
- 16,158
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Mounting Type :
- Through Hole, Right Angle
- Subcategory :
- D-Sub Connectors
- Brand :
- EDAC
- Contact Type :
- Signal
- Contact Form :
- -
- Shell Material, Finish :
- Steel, Nickel Plated
- Termination :
- Solder
- Flange Feature :
- Housing/Shell (M3)
- Color :
- Black
- Number of Positions :
- 15, 15
- Shell Size, Connector Layout :
- 2 (DA, A); 2 (DA, A)
- Product Category :
- D-Sub Dualport Connectors
- Product Type :
- Dual Port D-Sub Connectors
- Product Status :
- Active
- Wire Gauge :
- -
- Base Product Number :
- 663-015
- Number of Rows :
- 2, 2
- Contact Finish :
- Gold
- Series :
- 663
- Ingress Protection :
- -
- Dielectric Material :
- Polyester Thermoplastic
- Current Rating (Amps) :
- 3A per Contact
- Connector Style :
- D-Sub - Stacked
- Features :
- Grounding Indents, Mounting Brackets, Shielded
- Voltage Rating :
- -
- Connector Type :
- Plug, Male Pins; Receptacle, Female Sockets
- Operating Temperature :
- -55°C ~ 85°C
- Manufacturer :
- EDAC
- Contact Finish Thickness :
- 15.0μin (0.38μm)
- Backset Spacing :
- 0.318 (8.08mm)
- Contact Material :
- Brass, Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Package :
- Tray
- Datasheets
- 663-015-364-05C
663 Series D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets 15, 15-Position Signal Solder 2 (DA, A); 2 (DA, A) Through Hole, Right Angle Brass, Phosphor Bronze Gold Steel, Nickel Plated
663-015-364-05C Overview
The packaging contains Plug, Male Pins; Receptacle, Female Sockets.This device is mounted in the Through Hole, Right Angle position.There is a product in the 663 Series.As a result, the device runs at -55°C ~ 85°C Operating Temperature.
663-015-364-05C Features
663 series
663-015-364-05C Applications
There are a lot of EDAC
663-015-364-05C D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
