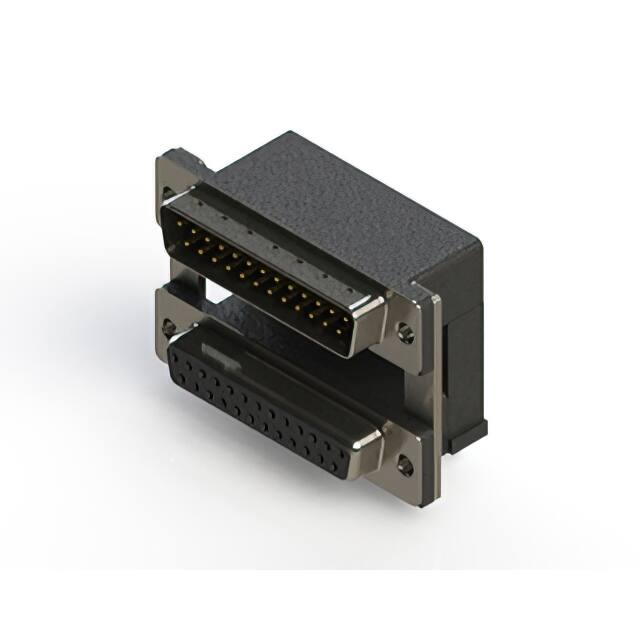

663-025-364-00A
Or copy the link below:
- Mfr.Part #
- 663-025-364-00A
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG/RCPT 25P R/A SLD
- Stock
- 15,140
- In Stock ：
- 15,140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- D-Sub Connector Assemblies
- Color :
- Black
- Series :
- 663
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Product Category :
- D-Sub Dualport Connectors
- Flange Feature :
- Housing/Shell (M3)
- Contact Material :
- Brass, Phosphor Bronze
- Contact Form :
- -
- Shell Material, Finish :
- Steel, Nickel Plated
- Subcategory :
- D-Sub Connectors
- Contact Type :
- Signal
- Contact Finish :
- Gold
- Product Type :
- Dual Port D-Sub Connectors
- Current Rating (Amps) :
- 3A per Contact
- Base Product Number :
- 663-025
- Brand :
- EDAC
- Ingress Protection :
- -
- Operating Temperature :
- -55°C ~ 85°C
- Connector Style :
- D-Sub - Stacked
- Manufacturer :
- EDAC
- Shell Size, Connector Layout :
- 3 (DB, B); 3 (DB, B)
- Number of Rows :
- 2, 2
- Wire Gauge :
- -
- Contact Finish Thickness :
- 15.0μin (0.38μm)
- Connector Type :
- Plug, Male Pins; Receptacle, Female Sockets
- Product Status :
- Active
- Dielectric Material :
- Polyester Thermoplastic
- Backset Spacing :
- 0.318 (8.08mm)
- Features :
- Grounding Indents, Shielded
- Number of Positions :
- 25, 25
- Termination :
- Solder
- Voltage Rating :
- -
- Package :
- Tray
- Datasheets
- 663-025-364-00A
663 Series D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets 25, 25-Position Signal Solder 3 (DB, B); 3 (DB, B) Through Hole, Right Angle Brass, Phosphor Bronze Gold Steel, Nickel Plated
663-025-364-00A Overview
The packaging contains Plug, Male Pins; Receptacle, Female Sockets.This device is mounted in the Through Hole, Right Angle position.There is a product in the 663 Series.As a result, the device runs at -55°C ~ 85°C Operating Temperature.
663-025-364-00A Features
663 series
663-025-364-00A Applications
There are a lot of EDAC
663-025-364-00A D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
