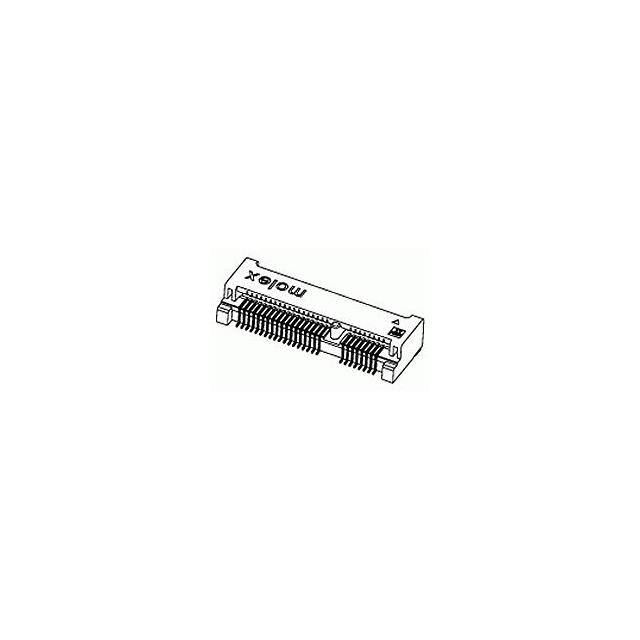

67910-6700

Manufacturer :

Molex

Product Category :

Unclassified

Number of Contacts :

52(POS)

RoHS :

Compliant

Packaging :

Tape and Reel

UL Flammability Code :

94V-0

Product Height (mm) :

5.75(mm)

Termination :

SMD/SMT

Manufacturer :

Molex

Package :

Box

IEC Conformance :

No

Product Status :

Active

Pitch (mm) :

0.8(mm)

MIL Conformance :

No

Termination Type :

Surface Mount

Option :

GENERAL PURPOSE

Card Thickness (mm) :

1(mm)

Country of Origin :

TW

Termination Method :

Solder

Terminal Pitch :

0.8 mm

Housing Color :

Black

DIN Conformance :

No

Voltage Rating Max :

50VDC/50VAC

Number of Contact Rows :

2

Contact Finish Termination :

Tin

Body Orientation :

RIGHT ANGLE

Mounting Style :

Surface Mount

JESD-609 Code :

e3

Mixed Contacts :

No

Total Number of Contacts :

52

Operating Temp Range :

-40C to 80C

Series :

*

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Contact Resistance Max :

55(mohm)

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Number of Circuits :

52

Contact Plating :

Gold Over Nickel

Filter Feature :

No

REACH SVHC :

Unknown

Current Rating (Max) :

1.1/Contact(A)

Reach Compliance Code :

Unknown

Plating :

Tin

Contact Gender :

FEMALE

Connector Type :

CARD EDGE CONNECTOR

Contact Material :

Phosphor Bronze

Pbfree Code :

yes

Mounting Type :

BOARD
