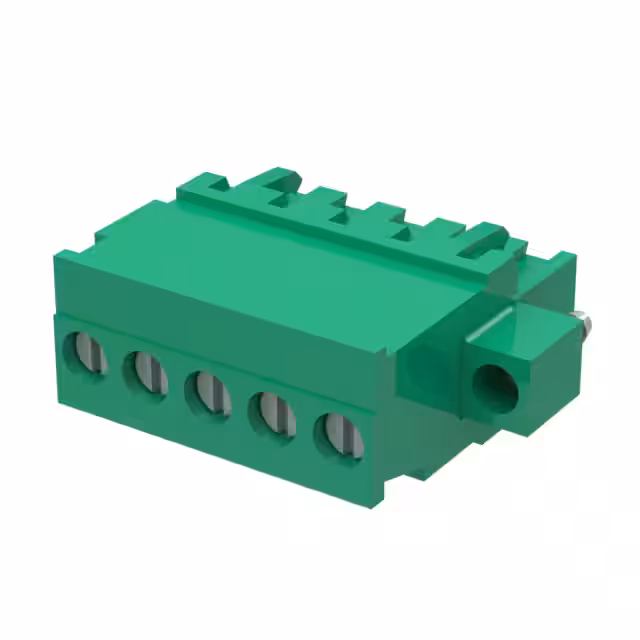

691345710005
Or copy the link below:
- Mfr.Part #
- 691345710005
- Manufacturer
- Würth Elektronik
- Package / Case
- Datasheet
- Download
- Description
- 5.00 MM TERMINAL BLOCK PLUG, HOR
- Stock
- 74
- In Stock ：
- 74
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Headers, Plugs and Sockets
- Wire Strip Length :
- 6-7mm
- Positions Per Level :
- 5
- Number of Positions :
- 5
- Color :
- Green
- Series :
- WR-TBL Series 3457
- Type :
- Plug, Female Sockets
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Operating Temperature :
- -40°C~105°C
- Wire Gauge or Range - AWG :
- 12-24 AWG
- Current - UL :
- 15A
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Mating Flange, Retention Latches (Non-Wire Side)
- Screw Size :
- M3
- Contact Material :
- Brass
- Insulation Height :
- 1.024 26.01mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Torque - Screw :
- 0.4 Nm (3.5 Lb-In)
- Factory Lead Time :
- 8 Weeks
- Termination Style :
- Screw - Leaf Spring, Wire Guard
- Number of Levels :
- 1
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Pitch :
- 0.197 5.00mm
- Wire Gauge or Range - mm² :
- 0.21-3.31mm2
- RoHS Status :
- ROHS3 Compliant
- Voltage - UL :
- 300V
- Plug Wire Entry :
- 90°
- Datasheets
- 691345710005
Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets WR-TBL Series 3457 Polyamide (PA66), Nylon 6/6 Brass
691345710005 Overview
This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the WR-TBL Series 3457 Series.Several benefits come from the Mating Flange, Retention Latches (Non-Wire Side) feature.Devices operate at -40°C~105°C operating temperatures.There are many benefits that this part shares with other Plug, Female Sockets products as well.
691345710005 Features
WR-TBL Series 3457 series
691345710005 Applications
There are a lot of Würth Elektronik
691345710005 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
