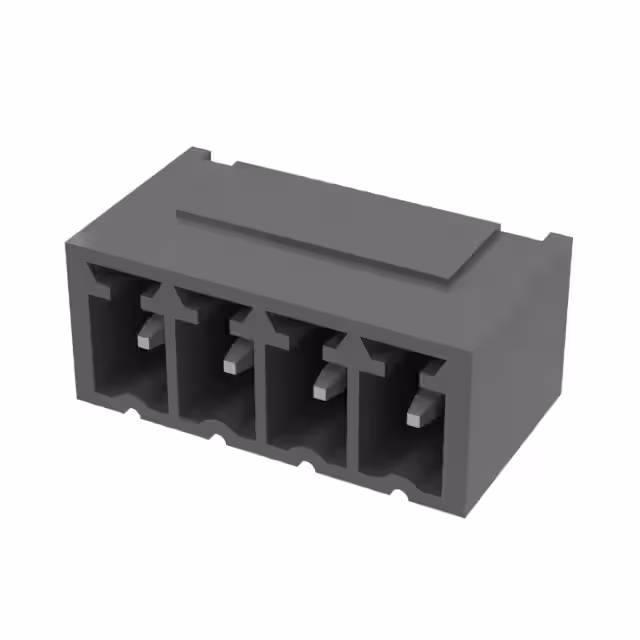

691701340004B
Or copy the link below:
- Mfr.Part #
- 691701340004B
- Manufacturer
- Würth Elektronik
- Package / Case
- Datasheet
- Download
- Description
- 3.81 MM TERMINAL BLOCK HEADER, H
- Stock
- 818
- In Stock ：
- 818
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Headers, Plugs and Sockets
- Header Orientation :
- 90°, Right Angle
- Pitch :
- 0.150 3.81mm
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Termination Style :
- Solder
- Voltage - Rated :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Color :
- Black
- Contact Mating Finish :
- Tin
- Current Rating :
- 10A
- Contact Tail Length :
- 0.102 2.60mm
- Positions Per Level :
- 4
- Lead Pitch :
- 3.81mm
- Termination :
- PCB
- Number of Contacts :
- 4
- Number of Positions :
- 4
- Connector Type :
- Terminal Block
- Series :
- WR-TBL Series 7013B
- Contact Material :
- Brass
- Operating Temperature :
- -40°C~105°C
- Number of Levels :
- 1
- Gender :
- Male
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.287 7.30mm
- RoHS Status :
- ROHS3 Compliant
- Contact Plating :
- Tin
- Packaging :
- Tape and Reel (TR)
- REACH SVHC :
- Unknown
- Current - UL :
- 10A
- Number of Pins :
- 4
- Voltage - UL :
- 300V
- Datasheets
- 691701340004B
Tape & Reel (TR) 0.150 3.81mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) WR-TBL Series 7013B Liquid Crystal Polymer (LCP) Tin Brass
691701340004B Overview
Packaging for this item is Terminal Block.There is a mounting type of Through Hole for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the WR-TBL Series 7013B Series.Devices with 4 pins are available.Through Hole is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
691701340004B Features
WR-TBL Series 7013B series
691701340004B Applications
There are a lot of Würth Elektronik
691701340004B Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
