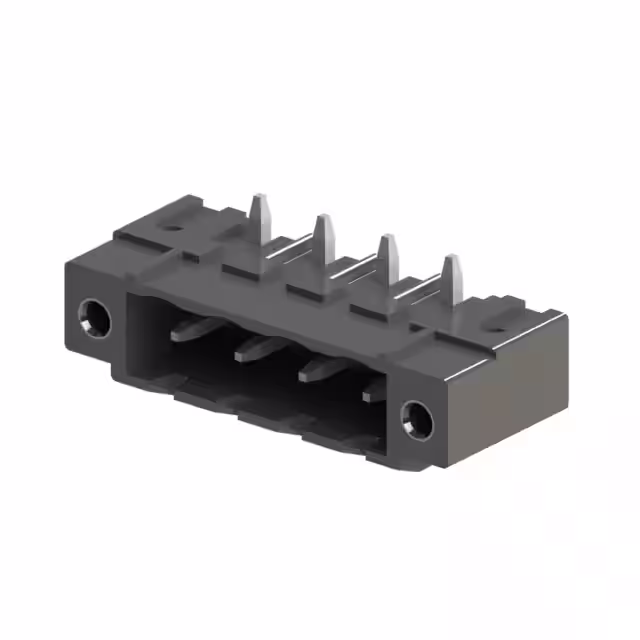

691701550004B
Or copy the link below:
- Mfr.Part #
- 691701550004B
- Manufacturer
- Würth Elektronik
- Package / Case
- Datasheet
- Download
- Description
- 5.08 MM TERMINAL BLOCK HEADER, H
- Stock
- 224
- In Stock ：
- 224
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Headers, Plugs and Sockets
- Termination Style :
- Solder
- Number of Contacts :
- 4
- Voltage - Rated :
- 300V
- Lead Pitch :
- 5.08mm
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Contact Mating Finish :
- Tin
- Current Rating :
- 10A
- Termination :
- PCB
- Color :
- Black
- Contact Material :
- Brass
- Number of Levels :
- 1
- Number of Pins :
- 4
- Pitch :
- 0.200 5.08mm
- Current - UL :
- 10A
- Series :
- WR-TBL Series 7015B
- Feature :
- Mating Flange
- Mounting Type :
- Through Hole
- REACH SVHC :
- Unknown
- Contact Plating :
- Tin
- Connector Type :
- Terminal Block
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Positions Per Level :
- 4
- Gender :
- Male
- Number of Positions :
- 4
- Insulation Height :
- 0.335 8.51mm
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Contact Tail Length :
- 0.110 2.80mm
- Mount :
- Through Hole
- Header Orientation :
- 90°, Right Angle
- Voltage - UL :
- 300V
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Datasheets
- 691701550004B
Tape & Reel (TR) 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) WR-TBL Series 7015B Liquid Crystal Polymer (LCP) Tin Brass
691701550004B Overview
The product comes in a package of Terminal Block.Through Hole is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the WR-TBL Series 7015B Series.4 pins are present on the device.It is more powerful in many ways due to its Mating Flange feature.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
691701550004B Features
WR-TBL Series 7015B series
691701550004B Applications
There are a lot of Würth Elektronik
691701550004B Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
