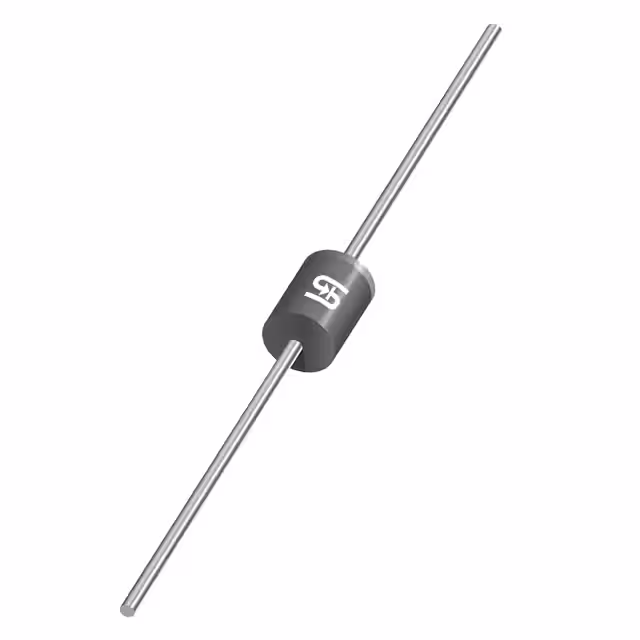

6A80G

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Rectifiers - Single

RoHS :

Details

Rep Pk Reverse Voltage-Max :

800 V

Package :

Tape and Reel (TR)

Application :

EFFICIENCY

Number of Terminals :

2

Qualification Status :

Not Qualified

Additional Feature :

HIGH RELIABILITY, LOW POWER LOSS

JESD-30 Code :

O-PALF-W2

ECCN Code :

EAR99

Repetitive Peak Reverse Voltage :

800V

Diode Configuration :

Single

Product Type :

Rectifiers

Product Category :

Rectifiers

Voltage - DC Reverse (Vr) (Max) :

800 V

Surface Mount :

No

Terminal Position :

Axial

Operating Temperature - Junction :

-55°C ~ 150°C

Speed :

Standard Recovery >500ns, > 200mA (Io)

Qualification :

-

Series :

6AxxG

Number of Phases :

1

Base Product Number :

6A80

Voltage - Forward (Vf) (Max) @ If :

1 V @ 6 A

Case Connection :

Isolated

Current - Average Rectified (Io) :

6A

Diode Type :

RECTIFIER DIODE

Packaging :

Cut Tape

Current - Reverse Leakage @ Vr :

10 µA @ 800 V

Reach Compliance Code :

Compliant

Package / Case :

R-6-2

Output Current-Max :

6 A

Reverse Recovery Time :

-

Supplier Device Package :

R-6

Mounting Type :

Through Hole

Terminal Form :

Wire

Configuration :

Single

Capacitance @ Vr, F :

60pF @ 4V, 1MHz

Package Shape :

Round

Non-rep Pk Forward Current-Max :

250 A

Number of Elements :

1

Product Status :

Active

Product :

Rectifiers

HTS Code :

8541.10.00.80

Terminal Finish :

Pure Tin (Sn)

Brand :

TAIWAN SEMICONDUCTOR

Diode Element Material :

SILICON
