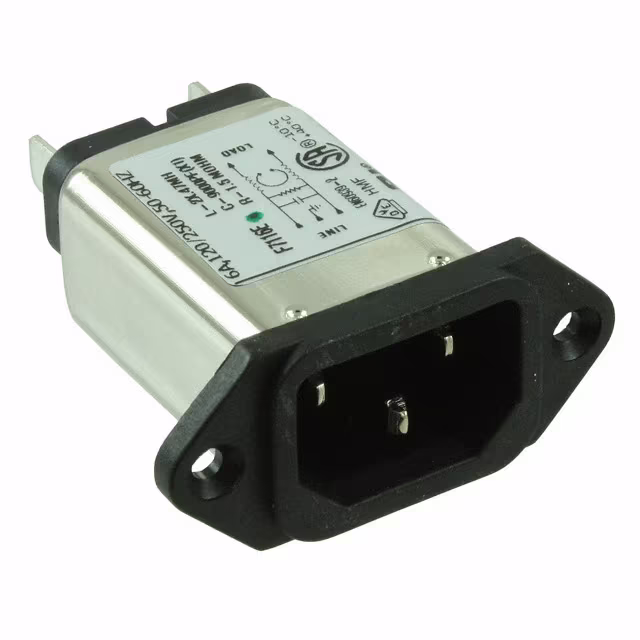

6EAH1

Manufacturer :

TE Connectivity Corcom Filters

Product Category :

Power Entry Modules (PEM)

Material Flammability Rating :

--

Switch Features :

--

Voltage - IEC :

120/250VAC

Operating Temperature Max Deg. C :

40C

Type :

EMI/RFI Filtered

Accomodates a Fuse :

No

Brand :

TE Connectivity / AMP

Switch Function :

Not Switched

Total Number of Contacts :

3

Mounting :

Flange Mount

Mounting Type :

Panel

Number of Ports :

1 Port

Panel Thickness :

--

Number of Positions :

3

Features :

Front or Rear Side Mount

Operating Temperature Min Deg. C :

-10C

Operating Frequency :

50/60(Hz)

Compliance :

UL

Mounting Style :

Panel

Product :

Inlets

Voltage Rating Max :

250VAC

Contact Gender :

Male

Reach Compliance Code :

Compliant

Termination Style :

Faston

Voltage Rating :

250 VAC

Packaging :

Bulk

Body Orientation :

Straight

Operating Temp Range :

-10C to 40C

Approvals :

CSA, UL, VDE

Contact Material :

NOT SPECIFIED

Approval Agency :

CSA, UL, VDE

Product Type :

AC Power Entry Modules

Option :

GENERAL PURPOSE

RoHS :

Details

Coupling Type :

Snap

IEC Conformance :

No

Connector Style :

IEC 320-C14

Product Height (mm) :

22.86(mm)

Ingress Protection :

--

Current - IEC :

6A

Current Rating :

6 A

Termination :

Faston

Package :

Bulk

Factory Lead Time :

12 Weeks, 2 Days

Connector Type :

MAINS POWER CONNECTOR

DIN Conformance :

No

Product Status :

Active

Subcategory :

Power Entry

Fuse :

No

Brand Name :

CII

MIL Conformance :

No

Voltage - UL :

250VAC

Product Category :

AC Power Entry Modules

Panel Cutout Dimensions :

Variable Size

Product Length (mm) :

50.29(mm)

Current - UL :

6A

Gender :

M

Product Depth (mm) :

54.61(mm)

Fuse Holder, Drawer :

--

Mains Connector Rating :

6A, 250V

Series :

EAH, Corcom

Current Rating (Max) :

6(A)

Filter Type :

Filtered (EMI, RFI) - Commercial
