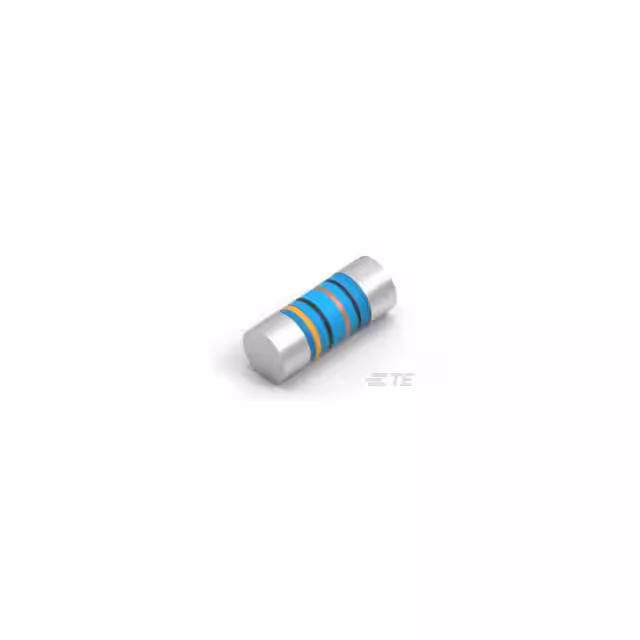

7-2176315-5

Manufacturer :

TE Connectivity

Product Category :

Unclassified

Composition :

Thin Film

Anti-Surge :

No

Pitch - Cable :

0.050 (1.27mm)

Package Type :

MELF

Packaging :

Tape and Reel

Height - Seated (Max) :

-

Resistance :

10(ohm)

Power (Watts) :

0.4W, 2/5W

Number of Terminations :

2

Product Depth (mm) :

Not Required(mm)

Construction :

Cylindrical

Termination Style :

Pad

Supplier Device Package :

0204

Product Status :

Active

Pitch - Connector :

0.100 (2.54mm)

Operating Temp Range :

-55C to 155C

Contact Finish :

Tin

Shielding :

Unshielded

Product Diameter (mm) :

1.4(mm)

Cable Termination :

IDC

Temperature Coefficient :

±50(ppm/°C)

Package / Case :

0204(1406)

Package :

Cut Tape (CT);Digi-Reel®;Box;

Features :

--

Connector Type :

DIP to DIP, Reversed

Type :

Thin Film

Size / Dimension :

0.055 Dia x 0.138 L (1.40mm x 3.50mm)

Temperature Range @ Derated Power :

70 TO 155

Usage :

Socket (0.1), Board In

Lead Spacing (nom) :

Not Required(mm)

Case Size :

0204(1406)

Length :

1.50 (457.20mm)

Anti-Sulfurated :

No

Number of Positions :

16

Operating Temperature :

-55°C ~ 155°C

Color :

Gray, Ribbon

Tolerance (+ or -) :

1%

Product Length (mm) :

3.5(mm)

Power Rating(s) :

0.4(W)

Product Height (mm) :

Not Required(mm)

Current Sensing :

No

Ratings :

AEC-Q200

Contact Finish Thickness :

100.0µin (2.54µm)

Military Standard :

Not Required

Failure Rate :

Not Required

Tolerance :

±1%

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

--

Series :

--

Number of Terminals :

2
