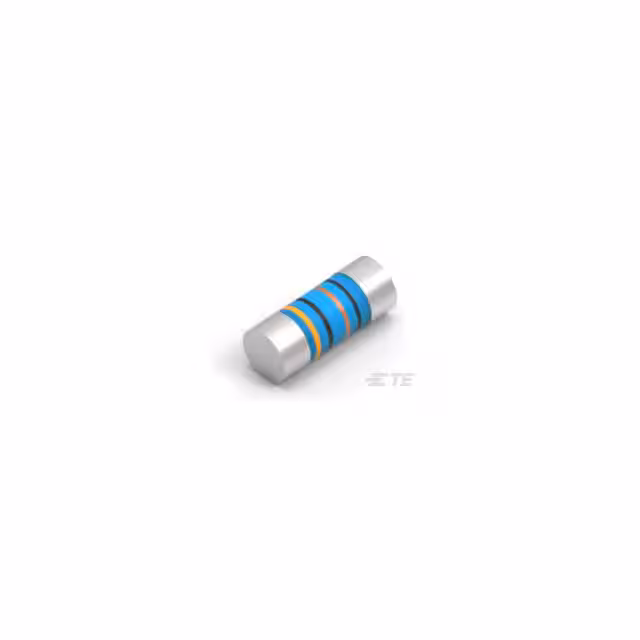

7-2176316-4

Manufacturer :

TE Connectivity

Product Category :

Unclassified

Type :

Thin Film

Temperature Coefficient :

±50(ppm/°C)

Features :

Automotive AEC-Q200

Product Status :

Active

Case Size :

0207(2309)

Supplier Device Package :

0207

Product Diameter (mm) :

2.2(mm)

Operating Temperature :

-55°C ~ 155°C

Military Standard :

Not Required

Temperature Range @ Derated Power :

70 TO 155

Resistance :

100000(ohm)

Packaging :

Tape and Reel

Anti-Surge :

No

Ratings :

AEC-Q200

Package Type :

MELF

Composition :

Thin Film

Number of Terminals :

2

Construction :

Cylindrical

Height - Seated (Max) :

-

Package / Case :

0207(2309)

Power (Watts) :

1W

Number of Terminations :

2

Lead Spacing (nom) :

Not Required(mm)

Package :

Cut Tape (CT);Digi-Reel®;Box;

Tolerance :

±1%

Product Height (mm) :

Not Required(mm)

Series :

SMA-A

Current Sensing :

No

Termination Style :

Pad

Failure Rate :

Not Required

Product Length (mm) :

5.9(mm)

Operating Temp Range :

-55C to 155C

Tolerance (+ or -) :

1%

Product Depth (mm) :

Not Required(mm)

Size / Dimension :

0.087 Dia x 0.232 L (2.20mm x 5.90mm)

Anti-Sulfurated :

No

Power Rating(s) :

1(W)
