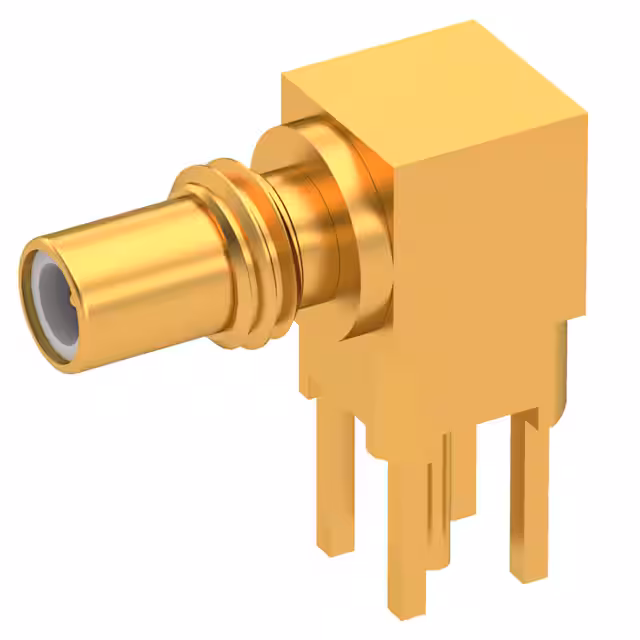

7010-1511-050

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mating Cycles :

500

Frequency - Max :

12.4 GHz

MIL Conformance :

No

Termination Type :

Solder

JESD-609 Code :

e4

Panel Mount :

No

Gender :

Male

Package :

Box

Contact Finish Termination :

Gold (Au)

Contact Gender :

Male

Fastening Type :

Threaded

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Additional Feature :

STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ

Connector Style :

SSMC

Features :

-

Cable Group :

-

Option :

GENERAL PURPOSE

Series :

-

Contact Plating :

Gold

Coupling Type :

Threaded

Center Contact Material :

BERYLLIUM COPPER

Contact Termination :

Solder

Housing Color :

Gold

Body Material :

Brass

Mounting Style :

RIGHT ANGLE

Factory Lead Time :

7 Weeks, 6 Days

Max Frequency :

12.4 GHz

Product Status :

Active

Operating Temperature :

-65°C ~ 165°C

DIN Conformance :

No

Ingress Protection :

-

Center Contact Plating :

Gold

Number of Ports :

1

Body/Shell Style :

Receptacle

Filter Feature :

No

Connector Type :

Jack, Male Pin

Manufacturer :

Radiall

Includes :

-

Impedance :

50Ohm

Body Finish :

Gold

Operating Frequency-Max :

12.4 GHz

RoHS :

Compliant

Voltage Rating :

250 V

Insertion Loss :

-

Mounting Feature :

-

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Reach Compliance Code :

Compliant

Mounting Type :

Through Hole, Right Angle

Base Product Number :

7010-1511

Shield Termination :

Solder

Characteristic Impedance :

50 Ω

Orientation :

RIGHT ANGLE
