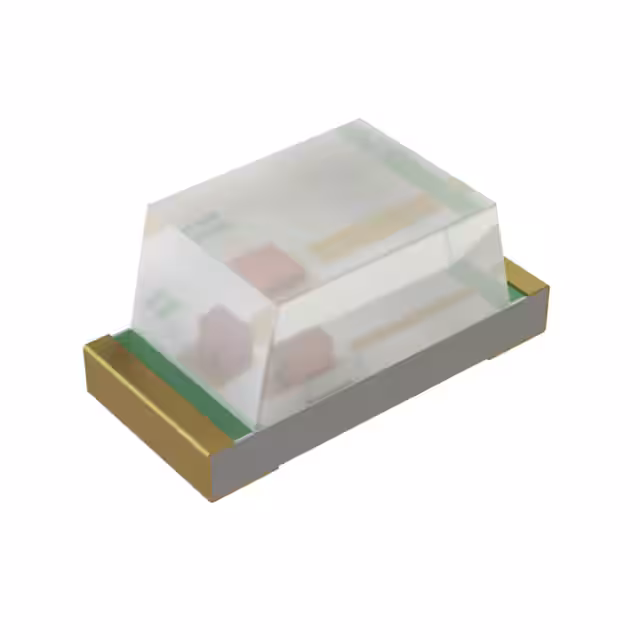

7017X15

Manufacturer :

Visual Communications Company, LLC

Product Category :

Lens Style :

Rectangle with Flat Top

Case Code (Metric) :

1608

Configuration :

Standard

Number of Terminations :

2

Mount :

Surface Mount

Number of Functions :

1

Viewing Angle :

70°

RoHS Status :

ROHS3 Compliant

Optoelectronic Device Type :

SINGLE COLOR LED

Wavelength - Peak :

555nm

Color :

Green

Reverse Voltage :

4V

Height :

710μm

Power Dissipation :

70mW

Published :

2012

Number of Elements :

1

Size / Dimension :

1.60mm Lx0.80mm W

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Luminous Intensity :

2.4 mcd

Lens Size :

1.09mmx0.79mm

Case Code (Imperial) :

0603

Max Operating Temperature :

85°C

Lens Transparency :

Diffused

Series :

7017X

Packaging :

Tape and Reel (TR)

Reverse Voltage (DC) :

4V

Millicandela Rating :

2.4mcd

Min Operating Temperature :

-30°C

Depth :

790μm

Pbfree Code :

yes

Packing Method :

Tape and Reel

Number of Pins :

2

Voltage - Forward (Vf) (Typ) :

2.1V

Package / Case :

0603 (1608 Metric)

Mounting Type :

Surface Mount

Shape :

RECTANGULAR

Power Rating :

70mW

Forward Current :

20mA
