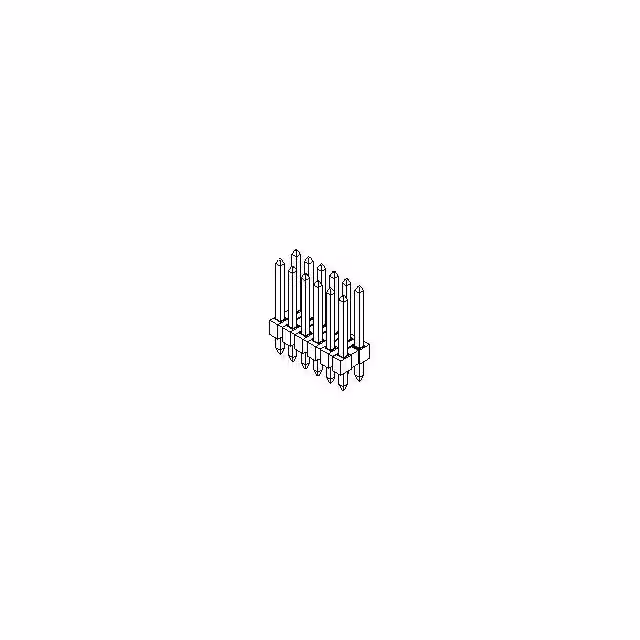

70287-1100

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination Post Length :

3.18 mm

Product :

Headers

Filter Feature :

No

Number of Positions :

8 Position

Number of Rows :

2 Row

Contact Plating :

Gold

Housing Material :

Liquid Crystal Polymer (LCP)

Product Category :

Headers and Wire Housings

Contact Gender :

Pin (Male)

Total Number of Contacts :

8

Mating Post Length :

6.1 mm

Flammability Rating :

UL 94 V-0

IEC Conformance :

No

Mounting Type :

BOARD

Reach Compliance Code :

Compliant

Product Type :

Headers and Wire Housings

Minimum Operating Temperature :

- 40 C

Type :

Breakaway

UL Flammability Code :

94V-0

DIN Conformance :

No

Termination Style :

Solder Pin

Voltage Rating :

250 VDC

Brand :

Molex

Connector Type :

BOARD CONNECTOR

Contact Material :

Tin

Maximum Operating Temperature :

+ 120 C

Package :

Box

Current Rating :

3 A

Mixed Contacts :

No

Orientation :

Vertical

Manufacturer :

Molex

Termination Type :

Solder

Packaging :

Bulk

Pitch :

2.54 mm

Tradename :

C-Grid

Housing Color :

Black

Mounting Style :

Kinked Pin

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Contact Type :

-

Series :

70287

Subcategory :

Headers and Wire Housings

Product Status :

Active

Application :

Board-to-Board

RoHS :

Details

Row Spacing :

2.54 mm

Mounting Angle :

Straight

Accessory Type :

-

Flammability :

94V-0

Terminal Pitch :

2.54 mm

MIL Conformance :

No
