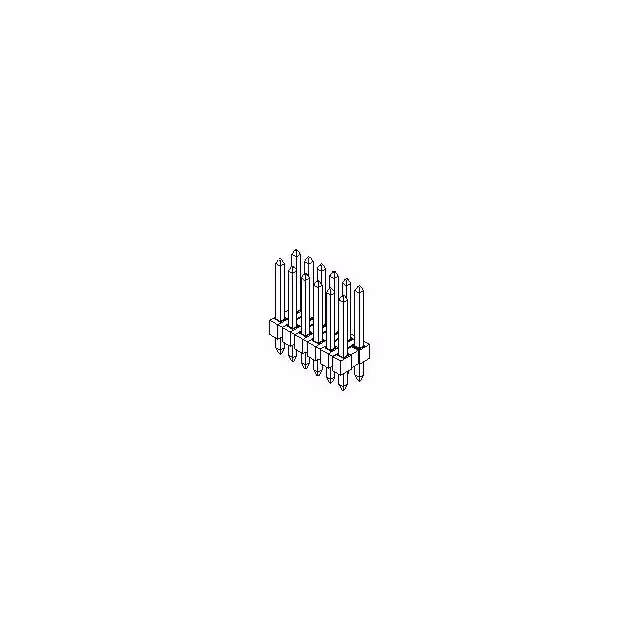

70287-1200

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Pitch :

2.54 mm

DIN Conformance :

No

Maximum Operating Temperature :

+ 120 C

UL Flammability Code :

94V-0

Flammability Rating :

UL 94 V-0

Orientation :

Vertical

Termination Method :

Solder

Filter Feature :

No

Subcategory :

Headers and Wire Housings

JESD-609 Code :

e3

Terminal Pitch :

2.54 mm

Contact Finish Termination :

TIN (80)

Termination Post Length :

3.18 mm

Product Depth (mm) :

5.08(mm)

Type :

Unshrouded Header

Product Type :

Headers and Wire Housings

Mounting Type :

BOARD

IEC Conformance :

No

Mixed Contacts :

No

Number of Positions :

12 Position

Gender :

HDR

Product Length (mm) :

15.24(mm)

Contact Material :

Brass

Body Orientation :

Straight

Connector Type :

BOARD CONNECTOR

Voltage Rating :

250 VDC

Series :

70287

Housing Color :

Black

Product Height (mm) :

8.39(mm)

Contact Gender :

Pin (Male)

Packaging :

Bag

Housing Material :

Thermoplastic

Product Category :

Headers and Wire Housings

Product :

Headers

Total Number of Contacts :

12

Voltage Rating Max :

250VDC

Current Rating :

3 A

Operating Temp Range :

-40C to 120C

Pbfree Code :

yes

Brand :

Molex

MIL Conformance :

No

Application :

Board-to-Board

Termination Type :

Solder

Manufacturer :

Molex

Reach Compliance Code :

Compliant

Row Spacing :

2.54 mm

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Contact Type :

-

Contact Plating :

Gold Over Nickel

Termination Style :

Solder Pin

Tradename :

C-Grid

Number of Rows :

2 Row

Flammability :

94V-0

Mating Post Length :

6.1 mm

Number of Contact Rows :

2

Accessory Type :

-

Mounting Angle :

Straight

Number of Contacts :

12(POS)

Mounting Style :

Through Hole

Option :

GENERAL PURPOSE

Current Rating (Max) :

3/Contact(A)

Product Status :

Active

Package :

Box

Pitch (mm) :

2.54(mm)
