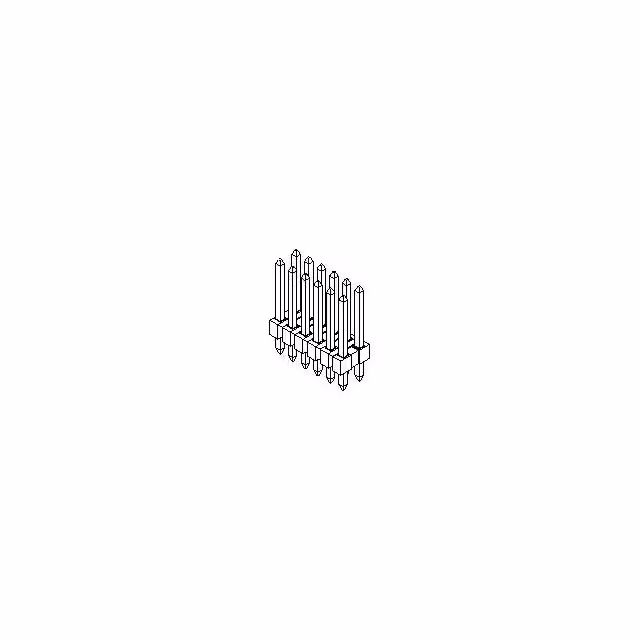

70287-1206

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Housing Color :

Black

Subcategory :

Headers and Wire Housings

Termination Type :

Solder

Series :

70287

Accessory Type :

-

Operating Temp Range :

-40C to 120C

Product Category :

Headers and Wire Housings

Mounting Type :

BOARD

Row Spacing :

2.54 mm

Gender :

HDR

Mounting Angle :

Straight

Termination Style :

Solder Pin

Contact Material :

Brass

Pbfree Code :

yes

Reach Compliance Code :

Compliant

Housing Material :

Liquid Crystal Polymer (LCP)

Voltage Rating Max :

250VDC

Number of Positions :

24 Position

Pitch :

2.54 mm

Termination Post Length :

3.18 mm

IEC Conformance :

No

Contact Type :

-

Current Rating :

3 A

Orientation :

Vertical

UL Flammability Code :

94V-0

Flammability :

94V-0

Termination Method :

Solder

Package :

Box

Mating Post Length :

6.1 mm

Voltage Rating :

250 VDC

Product Status :

Active

Number of Rows :

2 Row

Current Rating (Max) :

3/Contact(A)

Maximum Operating Temperature :

+ 120 C

DIN Conformance :

No

Filter Feature :

No

Mounting Style :

Through Hole

Brand :

Molex

Flammability Rating :

UL 94 V-0

HTS Code :

8536.69.40.40

Product Type :

Headers and Wire Housings

Product :

Headers

RoHS :

Details

Packaging :

Bag

Product Height (mm) :

8.39(mm)

Option :

GENERAL PURPOSE

Connector Type :

BOARD CONNECTOR

MIL Conformance :

No

Number of Contacts :

24(POS)

Type :

Unshrouded Header

ECCN Code :

EAR99

Application :

Board-to-Board

Pitch (mm) :

2.54(mm)

Product Length (mm) :

30.48(mm)

Terminal Pitch :

2.54 mm

Minimum Operating Temperature :

- 40 C

Product Depth (mm) :

5.08(mm)

Contact Plating :

Gold Over Nickel

Manufacturer :

Molex

Body Orientation :

Straight

Number of Contact Rows :

2

Contact Gender :

Pin (Male)

Mixed Contacts :

No

Tradename :

C-Grid

Total Number of Contacts :

24
