7029-1513-004
Or copy the link below:
- Mfr.Part #
- 7029-1513-004
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SSMC M STR EDGE
- Stock
- 35,480
- In Stock ：
- 35,480
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Factory Lead Time :
- 12 Weeks
- JESD-609 Code :
- e4
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Body/Shell Style :
- Receptacle
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Ports :
- 1
- Connector Type :
- Jack, Male Pin
- Voltage - Rated :
- 250V
- DIN Conformance :
- No
- Packaging :
- Bulk
- Center Contact Material :
- BERYLLIUM COPPER
- Reliability :
- COMMERCIAL
- Published :
- 2006
- RoHS Status :
- RoHS Compliant
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Board Edge, End Launch; Panel Mount
- Contact Style :
- COAX
- Body Material :
- Stainless Steel
- Operating Temperature :
- -65°C~165°C
- IEC Conformance :
- No
- Body Depth :
- 0.386 inch
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Mounting Feature :
- Bulkhead - Front Side Nut
- Gender :
- Male
- Fastening Type :
- Snap-On
- Center Contact Plating :
- Gold
- Mount :
- Edge
- Termination Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Frequency (Max) :
- 12.4GHz
- Mating Cycles :
- 500
- Shell Material :
- Brass
- Impedance :
- 50Ohm
- Includes :

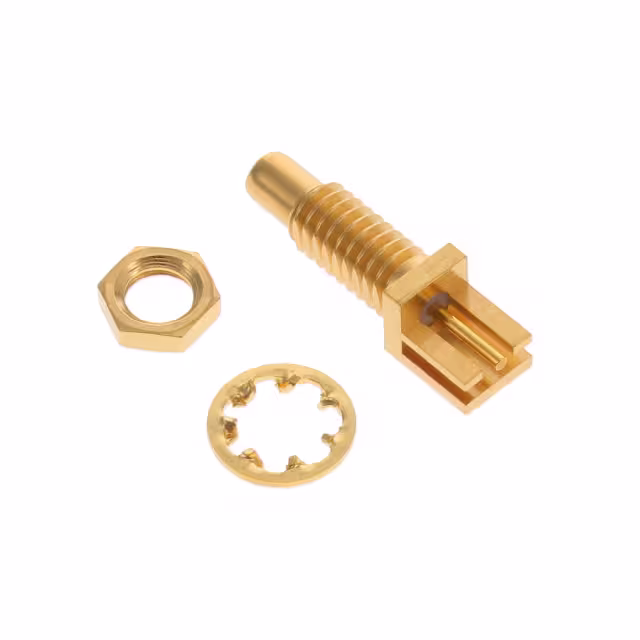

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Contact Termination :
- Solder
- MIL Conformance :
- No
- Connector Style :
- SSMC
- Total Number of Contacts :
- 1
- Coupling Type :
- Threaded
- Orientation :
- Straight
- Datasheets
- 7029-1513-004
Jack, Male Pin Snap-On 50Ohm Bulk SSMC Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
7029-1513-004 Overview
The connector type Jack, Male Pin refers to the connector type.The device's mounting type is Board Edge, End Launch; Panel Mount.In order to package the product, a Bulk case is used.It features 1 ports for managing a variety of tasks.The part is mounted by Edge.The device runs in -65°C~165°C Operating Temperature.
7029-1513-004 Features
7029-1513-004 Applications
There are a lot of Radiall USA, Inc.
7029-1513-004 Coaxial Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
