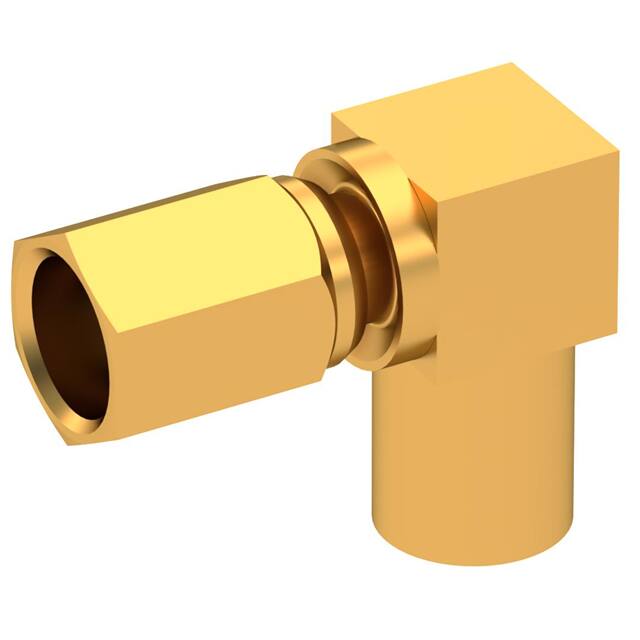

7105-1521-003
Or copy the link below:
- Mfr.Part #
- 7105-1521-003
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SSMC F RA NA CR 2.6/50S
- Stock
- 105
- In Stock ：
- 105
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- JESD-609 Code :
- e4
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- IEC Conformance :
- No
- Insulator Color :
- White
- Mating Cycles :
- 500
- Number of Ports :
- 1
- Voltage - Rated :
- 250V
- Body Material :
- Brass
- VSWR :
- 1.5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Center Contact Plating :
- Gold
- Contact Style :
- COAX
- Contact Finish - Mating :
- NOT SPECIFIED
- Operating Temperature :
- -65°C~165°C
- Mounting Option 1 :
- LOCKING
- Length :
- 10.92mm
- MIL Conformance :
- yes
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Published :
- 2006
- Insulation Material :
- Polytetrafluoroethylene
- Center Contact Material :
- BERYLLIUM COPPER
- Connector Type :
- Plug, Female Socket
- Gender :
- Male
- Pbfree Code :
- yes
- Connector Style :
- SSMC
- Reach Compliance Code :
- not_compliant
- Factory Lead Time :
- 11 Weeks
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Frequency (Max) :
- 12.4GHz
- Contact Termination :
- Crimp
- Fastening Type :
- Threaded
- Packaging :
- Bulk
- Insertion Loss :
- 0.3 dB
- Orientation :
- RIGHT ANGLE
- Impedance :
- 50Ohm
- Filter Feature :
- No
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Cable Group :
- RG-174, 316
- Contact Material :
- Copper
- Total Number of Contacts :
- 1
- Panel Mount :
- No
- Datasheets
- 7105-1521-003
Plug, Female Socket Threaded 50Ohm Bulk SSMC Crimp 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
7105-1521-003 Overview
This product is packaged in a Plug, Female Socket box.There is a Free Hanging (In-Line), Right Angle mounting type for the device.This product is packaged in a case marked Bulk.There are 1 ports available for managing a variety of tasks on this device.This device operates at a temperature of -65°C~165°C.
7105-1521-003 Features
7105-1521-003 Applications
There are a lot of Radiall USA, Inc.
7105-1521-003 Coaxial Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
