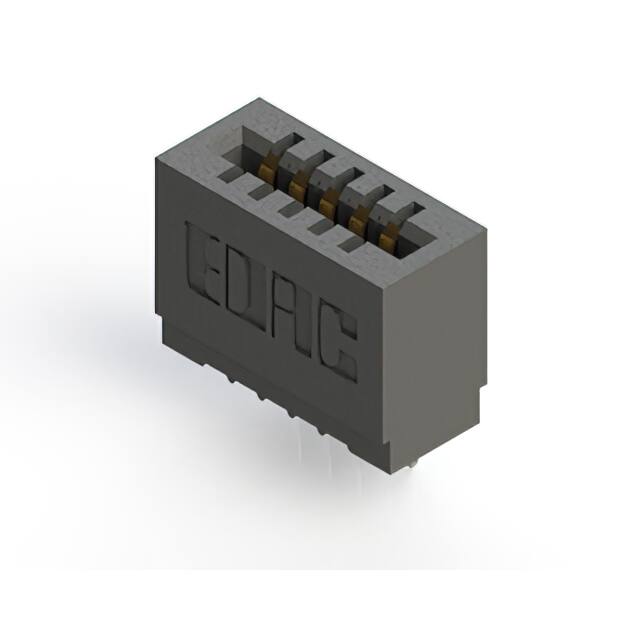

725-005-525-101
Or copy the link below:
- Mfr.Part #
- 725-005-525-101
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE SINGLE FML 5POS 0.100
- Stock
- 5,683
- In Stock ：
- 5,683
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Contact Finish :
- Gold
- Product :
- Receptacles
- Contact Type :
- Cantilever
- Product Status :
- Active
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Mounting Angle :
- Vertical
- Board Thickness :
- 1.57 mm
- Mounting Style :
- Press Fit
- Material - Insulation :
- Polyester Thermoplastic
- Flange Feature :
- -
- Termination Style :
- Solder Pin
- Insulation Resistance :
- 5000 MOhms
- Contact Material :
- COPPER ALLOY
- Contact Plating :
- Gold
- Features :
- -
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Color :
- Black
- Number of Positions/Bay/Row :
- 5
- Mounting Type :
- Through Hole
- Minimum Operating Temperature :
- - 40 C
- Gender :
- FEMALE
- Housing Material :
- Thermoplastic Polyester
- Current Rating :
- 3 A
- Card Type :
- Non Specified - Single Edge
- Termination :
- Press-Fit
- Base Product Number :
- 725-005
- Package :
- Bulk
- Operating Temperature :
- -40°C ~ 105°C
- Series :
- 725
- Number of Positions :
- 5 Position
- Read Out :
- Single
- RoHS :
- Details
- Maximum Operating Temperature :
- + 105 C
- Number of Rows :
- 1 Row
- Pitch :
- 2.54 mm
- Datasheets
- 725-005-525-101
