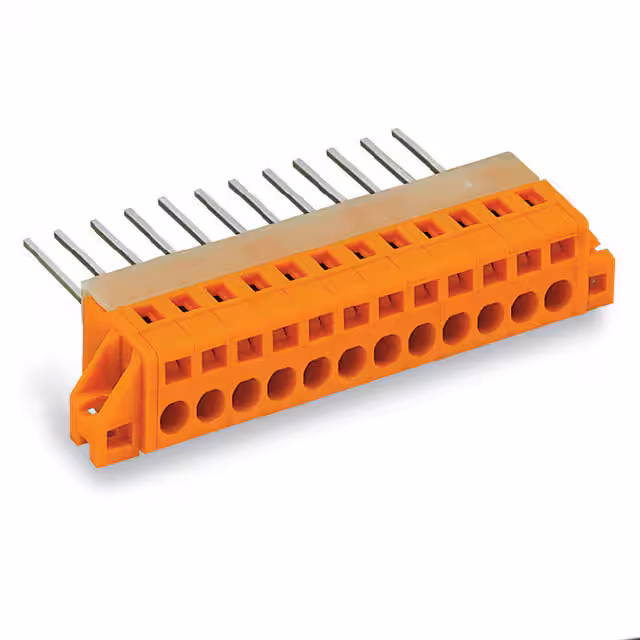

731-163

Manufacturer :

WAGO

Product Category :

Wire to Board

Length :

14.3 mm

Industrial packaging :

yes

Maximum Current Rating (A) :

5

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Mounting :

Through Hole

AWG max. :

14

Connectable conductor cross section solid-core :

0.08 - 2.5

Color :

Orange

Product Depth (mm) :

15.5

Termination Method :

Wire Wrap

Transparent :

No

Maximum Voltage Rating :

300V

Housing Color :

Orange

Width :

30.44 mm

Cross section (flexible) (min.) :

0.08mm²

Minimum Operating Temperature (°C) :

-60

Contact Material :

Copper, Tin

Operating Temperature :

-60°C ~ 105°C

Body Orientation :

Straight

Screw Material - Plating :

-

PPAP :

No

Stripping length (max.) :

9mm

Torque - Screw :

-

Rated current In :

5

AWG (min.) :

28

Positions Per Level :

3

No. of rows :

1

Flammability Rating :

UL94 V-0

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Voltage :

300 V

Housing Material :

Polyamide (PA66), Nylon 6/6

Depth :

12

Number of Poles :

3

Wire Gauge :

14-28 AWG

Screw Thread :

-

Type :

PC Terminal Block

Connection :

Spring-loaded terminal,Wire wrap

Cross section (flexible) (max.) :

2.50mm²

Mating Orientation :

Vertical with Board

Current :

5 A

RoHS :

yes

ECCN (US) :

EAR99

Wire protection :

yes

HTS :

8536.90.40.00

Package :

Box

Composition :

Polyamide

Manufacturer part # :

731-163

Maximum Operating Temperature (°C) :

105

Automotive :

No

Mounting Type :

PCB Mount

Pitch :

0.200 (5.08mm)

Product Length (mm) :

30.44

Connection Type :

Spring Clamp

Number of Circuits :

3

Product Status :

Active

Clamp Material - Plating :

Steel - Nickel Plated

Height :

15.5 mm

Pin Length :

20.5 MilliMeters

Approvals :

UL;CSA

Number of Contacts :

3

Min. stripping length :

8mm

Temperature Range :

-76 to 221 Degrees F

CS :

5.08mm

Cross section (inflexible) (max.) :

2.50mm²

Inflammability class of insulation material according to with UL94 :

V0

Product Height (mm) :

14.3

EU RoHS :

Compliant

Number of Rows :

1

Content :

50pc(s)

Features :

+ CAGE CLAMP®

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Manufacturer :

Wago

Connectable conductor cross section multi-wired :

0.08 - 2.5

Cross section (inflexible) (min.) :

0.08mm²

Terminal Pitch (mm) :

5.08

Nominal voltage :

320V

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Series :

731

Pins per row :

3

Number of Levels :

1

Number of Pins :

3
