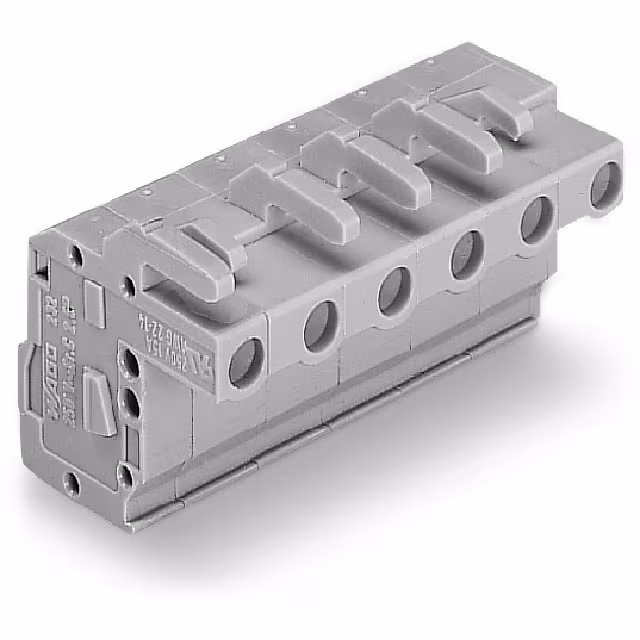

732-106/026-000

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Material housing :

Plastic

Rated current In :

16

AWG (min.) :

28

Current :

15 A

Product Status :

Active

Positions Per Level :

6

Housing Material :

Polyamide (PA66), Nylon 6/6

Torque - Screw :

-

Current Rating :

16 A

RoHS :

Non-Compliant

Rated surge voltage :

6

Plug Wire Entry :

270°

Series :

732

Length :

22.75mm

Mounting :

Cable Mount

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Current - IEC :

14A

With protective conductor :

No

Wire Size :

28-12 AWG

EU RoHS :

Compliant

Degree of protection (IP), mounted :

IP20

Temperature :

-60-100 °C

Approvals :

CB, UR

Insulation Height :

0.941 (23.90mm)

Connector contact surface :

Tin plated

Gender :

F

Min. cross section :

0.08mm²

Mounting Type :

Free Hanging (In-Line)

Maximum Current Rating (A) :

14

Connection :

Spring-loaded terminal

Contact Tail Length :

-

Manufacturer part # :

732-106/026-000

Nominal current - rounded value :

16A

Flammability Rating :

UL94 V-0

Termination Method :

Spring Clamp

Package :

Box

Stripping length (max.) :

9.00mm

Number of Positions :

6

Header Orientation :

-

Industrial packaging :

yes

Over voltage category :

III

Current - UL :

15 A

Connectable conductor cross section solid-core :

0.08 - 2.5

Pitch :

0.295 (7.50mm)

Termination Style :

Screwless - Push-In Spring

Screw Size :

-

CS :

7.50mm

Body Orientation :

RIGHT ANGLE

Number of Contacts :

6

Voltage - UL :

600 V

Product Length (mm) :

44.9

Case material :

PA 66

Type of electric connection :

Spring clamp connection

Height :

23.90mm

Automotive :

No

Manufacturer :

Wago

Voltage - IEC :

1 kV

Product Height (mm) :

23.9

Connector Type :

Socket

Pins per row :

6

Nominal current :

16A

Material contact :

Other copper alloys

Pollution degree :

2

Voltage :

300 V

Connectable conductor cross section multi-wired :

0.08 - 2.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Features :

Retention Latches (Non-Wire Side)

Product Depth (mm) :

22.75

AWG max. :

12

Stripping Length :

8-9 mm

max. cross section :

2.5mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

No. of rows :

1

Type :

PC Terminal Block

Material of contact surface :

Tin

Wire Strip Length :

8-9mm

Operating Temperature :

-60°C ~ 85°C

Number of Circuits :

6

Total number of pins :

6

Ingress Protection :

-

Nominal voltage :

630V

Dim :

(L x W x H) 22.75 x 44.90 x 23.90 mm

Width :

44.90mm

Content :

50pc(s)

ECCN (US) :

EAR99

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

PPAP :

No

HTS :

8536.69.40.51

Maximum Operating Temperature (°C) :

85

Contact Mating Finish :

Tin

Number of Rows :

1

Maximum Voltage Rating :

300V

Wire Gauge or Range - AWG :

12-28 AWG

Product Weight (g) :

13.4

Housing Color :

Gray

Color :

Grey

Contact Material :

COPPER ALLOY

Contact Finish :

Tin

Terminal Pitch (mm) :

7.5

Minimum Operating Temperature (°C) :

-60

Size :

28-12 AWG
