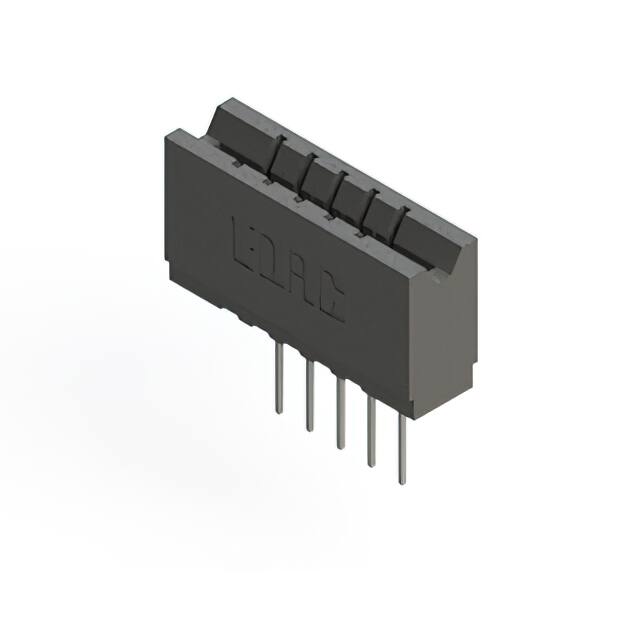

737-005-540-106
Or copy the link below:
- Mfr.Part #
- 737-005-540-106
- Manufacturer
- EDAC Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE SGL FMALE 5POS 0.156
- Stock
- 36,420
- In Stock ：
- 36,420
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EDAC Inc.
- Product Category :
- Edgeboard Connectors
- Contact Material :
- COPPER ALLOY
- Gender :
- FEMALE
- Insulation Resistance :
- 5000 MOhms
- Mounting Angle :
- Vertical
- Color :
- Black
- Contact Type :
- Cantilever
- Read Out :
- Single
- Card Thickness :
- 0.054 ~ 0.070 (1.37mm ~ 1.78mm)
- Mounting Type :
- Through Hole
- Housing Material :
- Thermoplastic Polyester
- Series :
- 737
- Pitch :
- 3.96 mm
- Minimum Operating Temperature :
- - 40 C
- Maximum Operating Temperature :
- + 105 C
- Base Product Number :
- 737-005
- Product Status :
- Active
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Package :
- Bulk
- Number of Positions/Bay/Row :
- 5
- Board Thickness :
- 1.57 mm
- Current Rating :
- 3 A
- Product :
- Receptacles
- Operating Temperature :
- -40°C ~ 105°C
- Termination :
- Press-Fit, Wire Wrap
- Features :
- -
- Contact Plating :
- Gold
- Mounting Style :
- Press Fit
- Material - Insulation :
- Polyester Thermoplastic
- Termination Style :
- Wire Wrap
- Contact Finish :
- Gold
- Number of Rows :
- 1 Row
- Flange Feature :
- -
- Number of Positions :
- 5 Position
- Card Type :
- Non Specified - Single Edge
- Datasheets
- 737-005-540-106
