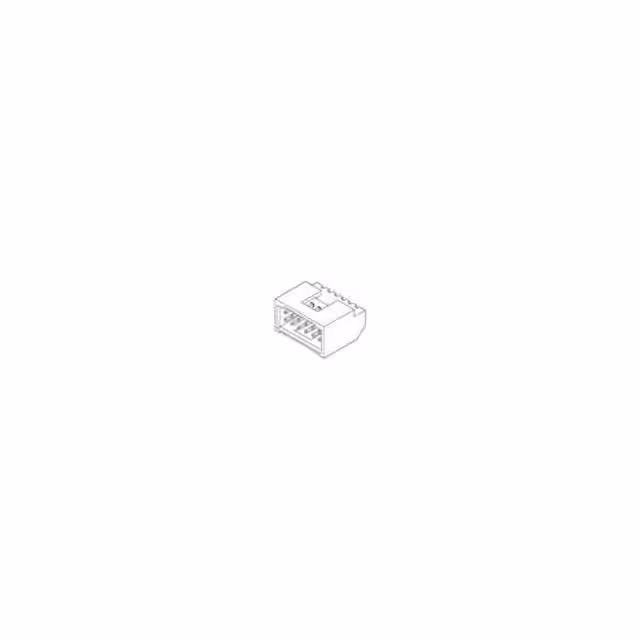

74162-1030

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Series :

*

Application :

Board-to-Board

Mounting Angle :

RIGHT ANGLE

Body Orientation :

RIGHT ANGLE

Number of Contacts :

30(POS)

Product Status :

Active

Termination Method :

Solder

Number of Contact Rows :

2

Number of Positions :

30 Position

Product Height (mm) :

10.67(mm)

Mounting Style :

Through Hole

Gender :

HDR

Pitch (mm) :

2.54(mm)

Flammability Rating :

UL 94 V-0

Contact Material :

Tin

Product :

Headers

Minimum Operating Temperature :

- 40 C

Packaging :

Tube

Orientation :

RIGHT ANGLE

Current Rating (Max) :

2.5/Contact(A)

Pitch :

2.54 mm

Termination Style :

Solder Pin

Voltage Rating :

250 V

Contact Plating :

Tin

RoHS :

Details

Product Length (mm) :

40.95(mm)

Current Rating :

2.5 A

Maximum Operating Temperature :

+ 105 C

Product Depth (mm) :

16.23(mm)

Voltage Rating Max :

250V

Flammability :

94V-0

Operating Temp Range :

-40C to 105C

Type :

SHROUDED

Housing Color :

Black

Package :

Box

Number of Rows :

2 Row
