74S253PC

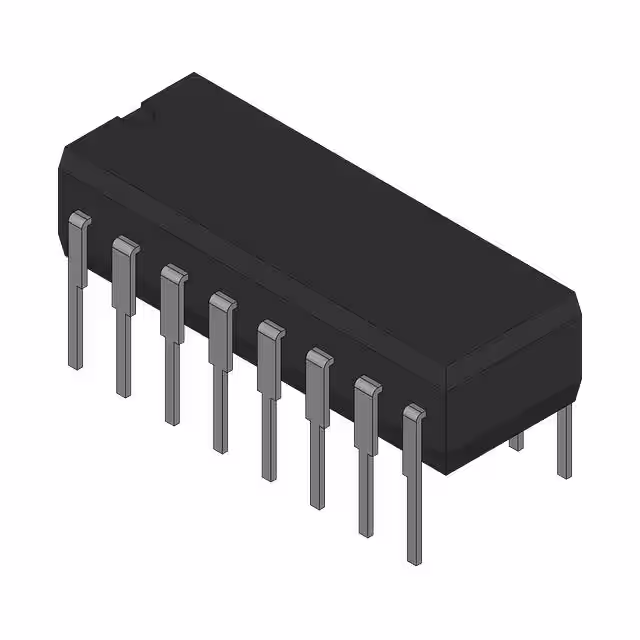

Analog Switches, Multiplexers, Demultiplexers National Semiconductor 74S253PC Overview

The Analog Switches, Multiplexers, Demultiplexers National Semiconductor 74S253PC is a high-performance, dual 4-input multiplexer designed for various digital applications. Manufactured by National Semiconductor, this component excels in environments requiring high-speed data selection and routing. The 74S253PC allows for the selection of data from four input sources per multiplexer, routed through a common output, making it extremely versatile. Its robust design and reliability make it an ideal choice for demanding applications, driving efficiency and reducing system complexity in digital circuitry.

74S253PC Features

The 74S253PC multiplexer includes key features that enhance its utility in sophisticated digital systems:

• High-speed switching capability suitable for demanding applications.
• Dual 4-input multiplexer functionality, allowing for efficient data routing and signal integrity.
• Standard TTL interface, ensuring compatibility with most digital systems.
• Durable design engineered for long-term reliability and performance.

74S253PC Applications

• Data Processing Systems: Utilized for data routing and signal multiplexing to enhance processing speed and efficiency.
• Communication Equipment: Applies in the selection and routing of signals in telecommunications infrastructure to ensure clear and uninterrupted transmission.
• Test and Measurement Instruments: Integral in multiplexing signals for analytical and diagnostic equipment, improving accuracy and functionality.
• Consumer Electronics: Used in devices requiring high-speed digital switching, such as advanced gaming consoles and home entertainment systems.
