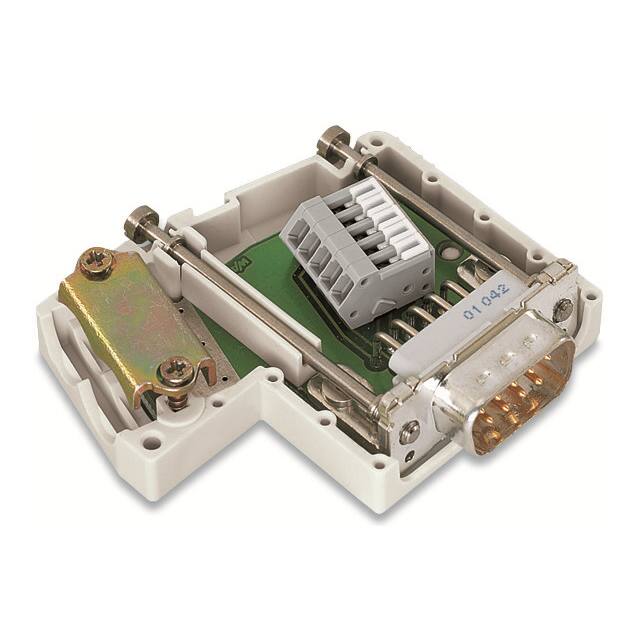

750-962

Manufacturer :

WAGO

Product Category :

D-Sub Connector Assemblies

Connector Style :

D-Sub

Connector Type :

Plug, Male Pins

Spare part :

No

Gender :

Male

Type of electrical accessory/spare part :

PLUG

Shell Material, Finish :

-

Primary Material :

-

Body Material :

PA66

Contact Form :

-

Max. ambient temperature :

+60°C

Contact Finish :

-

Width :

12mm

Operating Temperature :

0°C ~ 60°C

Dielectric Material :

-

Number of Positions :

9

Type :

WAGO GmbH and Co. KG

Weight :

29g

Number of Poles :

9

Shell Size, Connector Layout :

1 (DE, E)

Cable Diameter Range :

4.5-9.5 mm

Color :

-

Termination :

Terminal Block

Manufacturer :

Wago

Current Rating (Amps) :

-

Wire Gauge :

20-28 AWG

Min. ambient temperature :

0°C

Flange Feature :

Cable Side, Male Jackscrew

Interfaces :

Interbus,D-Sub 9

Material Flammability Rating :

-

Accessory Type :

Connector

ECCN (US) :

EAR99

Type of mechanical accessory/spare part :

Other

PPAP :

No

HTS :

8536.69.80.00

Approvals :

UL

EU RoHS :

Compliant

IP Rating :

IP20

Length :

100mm

Manufacturer part # :

750-962

RoHS :

yes

Ingress Protection :

IP20

Dim :

(L x W x H) 100 x 12 x 64 mm

Contact Finish Thickness :

-

Voltage Rating :

-

Backset Spacing :

-

Features :

Grounding Indents

Contact Type :

Spring Clamp

Automotive :

No

Contact Material :

-

Packaging :

Box

Height :

64mm

Mounting Type :

Free Hanging (In-Line)

Accessory :

yes

Number of Rows :

2

Series :

-

Temperature Range :

0-60 °C

Package :

Bag

Product Status :

Active

For Use With :

INTERBUS
