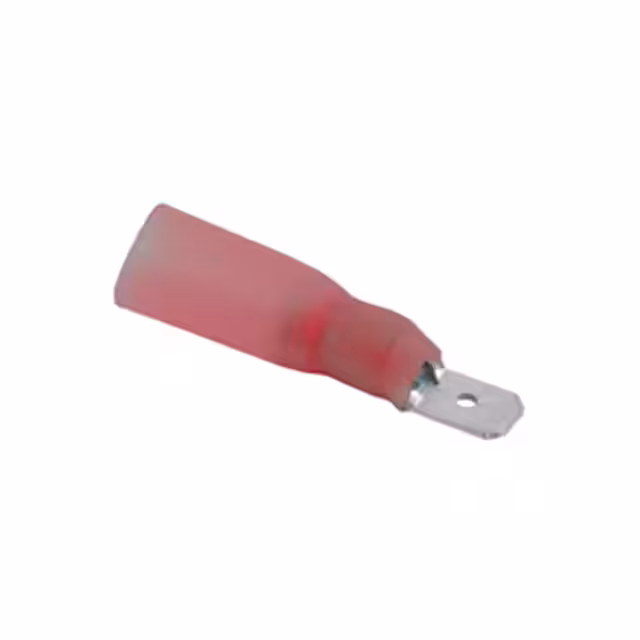

76-HIMD22L

Manufacturer :

NTE Electronics, Inc.

Product Category :

Quick Connects, Quick Disconnect Connectors

Number of Positions :

100

Contact Finish - Mating :

Gold

Current Rating (Amps) :

5A

Wire Size (AWG) :

22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG

Base Product Number :

D38999/26KH

Orientation :

C

Tab Size :

0.25 x 0.032

Primary Material :

Metal

Voltage Rating :

-

Material :

Tin Plated Brass

Insulation :

Non-Mating End Heat Shrink

Insulated :

Insulated

Contact Material :

COPPER ALLOY

Insulation Material :

Heat Shrinkable Tube

Backshell Material, Plating :

-

Wire Size :

22-18 AWG

Applications :

Aviation, Marine, Military

Cable Opening :

-

Ingress Protection :

IP67 - Dust Tight, Waterproof

Package :

Bag

Product Status :

Active

Shell Finish :

Passivated

Length - Overall :

1.457 (37.00mm)

Contact Finish Thickness - Mating :

50.0µin (1.27µm)

Features :

Coupling Nut

Manufacturer :

NTE Electronics

Shell Material :

Stainless Steel

Connector Type :

Plug, Male Pins

Operating Temperature :

-65°C ~ 200°C

Tab Thickness :

0.032 (0.81mm)

Fastening Type :

Threaded

Gender :

Male

Insert Material :

Thermoplastic

Mounting Feature :

-

Tab Width :

0.250 (6.35mm)

Shell Size, MIL :

H

Package Quantity :

50

Mounting Type :

Free Hanging (In-Line)

Termination :

Crimp

Color :

-

Contact Finish :

Electro-Tin

Shell Size - Insert :

23-35

Shielding :

Shielded

Terminal Type :

Disconnect - Male

Insulation Diameter :

-

Terminal Material :

Brass

Wire Gauge :

18-22 AWG

Series :

Military, MIL-DTL-38999 Series III

Material Flammability Rating :

-
