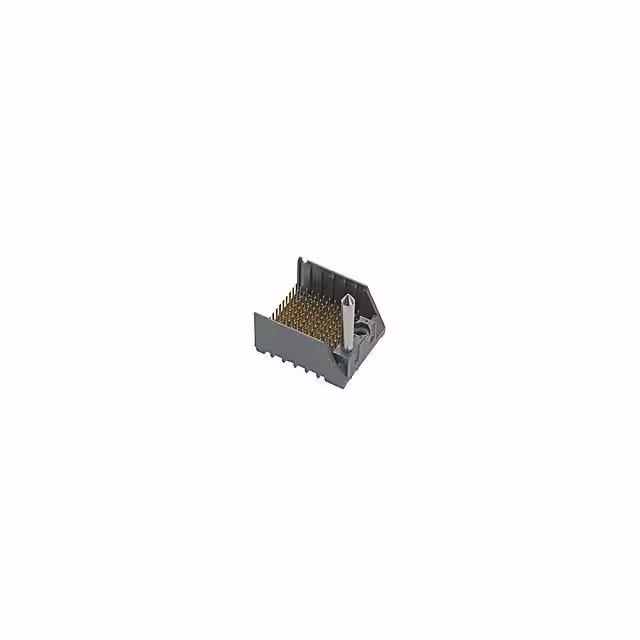

76035-5103

Manufacturer :

Molex

Product Category :

Specialized

Product Height (mm) :

31.6(mm)

Operating Temperature :

-55°C ~ 80°C

Package :

Box

Series :

76035

Contact Layout, Typical :

-

Max Operating Temperature :

80 °C

Pitch (mm) :

3.7(mm)

Current Rating :

1 A

Min Operating Temperature :

-55 °C

Body Orientation :

Straight

Termination Style :

Through Hole

Max Voltage Rating (AC) :

120 V

Current Rating (Max) :

1/Contact(A)

Type :

Backplane

Number of Positions :

300 Position

Data Rate :

12 Gbps

Country of Origin :

US

Minimum Operating Temperature :

- 55 C

Termination :

Press-Fit

Voltage Rating Max :

120VDC/120VAC

Connector Usage :

-

Number of Positions Loaded :

All

Maximum Operating Temperature :

+ 80 C

Number of Contact Rows :

15

Depth :

32.2 mm

Housing Color :

Black

Features :

-

Material Flammability Rating :

UL94 V-0

Subcategory :

Backplane Connectors

Mounting Angle :

Vertical

Housing Material :

Thermoplastic (TP)

Product Depth (mm) :

32.2(mm)

Number of Rows :

15 Row

Orientation :

Vertical

Contact Finish :

Gold

Product Status :

Active

Gender :

HDR

Contact Finish Thickness :

30.0µin (0.76µm)

Color :

Black

Mounting Style :

Through Hole

Reach Compliance Code :

Compliant

Pitch :

1.85 mm

Flammability Rating :

UL94 V-0

Shielding :

No

Number of Columns :

10

Mounting Type :

Through Hole

Number of Circuits :

300

Brand :

Molex

Product Type :

High Speed / Modular Connectors

Number of Contacts :

300(POS)

Product Category :

High Speed / Modular Connectors

Termination Method :

Press Fit

Operating Temp Range :

-55C to 80C

Plating :

Tin

Contact Material :

COPPER ALLOY

Packaging :

Tray

Connector Type :

Header, Male Pins

Manufacturer :

Molex

Contact Plating :

Gold Over Nickel

Mount :

Through Hole

RoHS :

Details

Length :

35.9 mm

Tradename :

GbX I-Trac

Connector Style :

I-Trac, Guide Right

Product Length (mm) :

35.9(mm)

Voltage Rating :

120 VAC/DC

Current Rating (Amps) :

-
