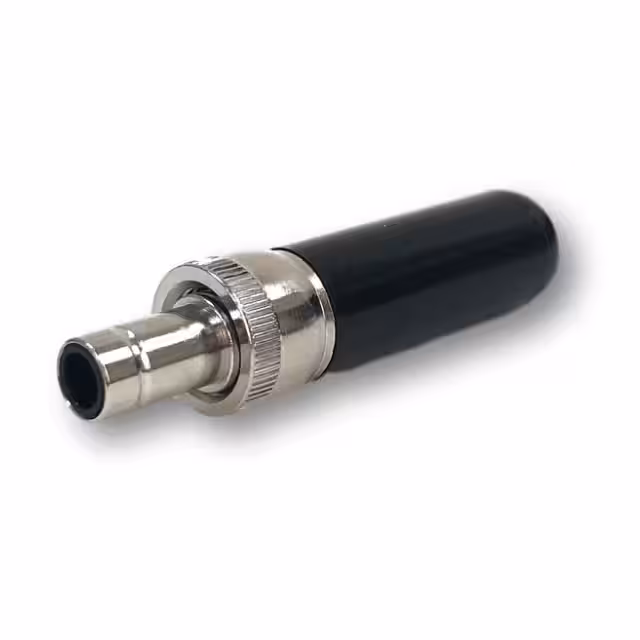

760KZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Mounting Type :

Free Hanging (In-Line)

Product Height (mm) :

Not Required(mm)

Termination Style :

Solder

Operating Temperature :

-

ECCN :

EAR99

Contact Plating :

Nickel

Itar Registered :

Unavailable

Contact Material :

COPPER ALLOY

Inside Contact Diameter :

2.5 mm

Body Material :

Brass

Pin Diameter :

-

Outside Contact Diameter :

5.5 mm

Insulation Color :

Black

Features :

Cable Clamp, Thread Lock

Series :

-

Thread Size :

-

Voltage - Rated :

24VDC

Body Color :

Silver, Black

Type :

DC Power

Includes :

-

RoHS :

Details

Mounting Angle :

Straight

Package :

Bulk

Number of Ports :

1(Port)

Product Length (mm) :

43.2(mm)

Packaging :

Bulk

Current Rating (Amps) :

5 A

Product :

Plugs

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Gender :

PL

Current Rating :

5 A

Product Diameter (mm) :

9.5(mm)

Housing Material :

Thermoplastic (TP)

Voltage Rating Max :

24VDC

Voltage Rating :

24 VDC

IP Rating :

-

Color :

Black

Product Depth (mm) :

Not Required(mm)

Mounting Style :

CABLE

Termination Method :

Solder

Internal Switch(s) :

Does Not Contain Switch

Connector Type :

PLUG

Mating Length/Depth :

0.374 (9.50mm)

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Product Status :

Active

Termination :

Solder Eyelet(s)

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Contact Material - Plating :

Tin

Number of Contacts :

2(POS)

Mounting Feature :

-

Number of Terminals :

2

Current Rating (Max) :

5(A)

Material Flammability Rating :

-

Ingress Protection :

-

Shielding :

Unshielded

Body Orientation :

Straight
