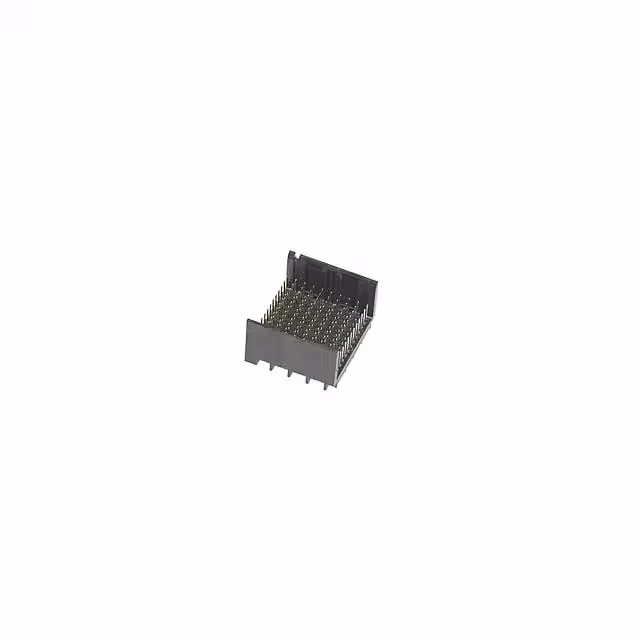

76155-1103

Manufacturer :

Molex

Product Category :

Specialized

Terminal Length :

0.055 inch

PCB Contact Row Spacing :

1.3462 mm

Product Length :

18.9 mm

Contact Material :

Tin

Operating Temp Range :

-55C to 85C

Gender :

Header

Current Rating (Amps) :

-

Termination Style :

Through Hole

Rated Current (Signal) :

0.75 A

Contact Finish :

Gold

Voltage Rating Max :

30VDC/30VAC

Type :

Backplane

Contact Resistance Max :

10(mohm)

Reference Standard :

UL

Mounting Option 1 :

LOCKING

Pitch :

1.9 mm

Product Height (mm) :

11.95(mm)

Mounting Style :

Through Hole

Series :

76155

Color :

Black

Body Breadth :

0.819 inch

Mounting Type :

Through Hole

Number of Positions :

120 Position

Package :

Box

Terminal Pitch :

1.905 mm

Connector Usage :

-

Number of Contact Rows :

12

Mating Contact Pitch :

0.075 inch

Current Rating :

750 mA

Tradename :

Impact

Contact Finish Termination :

TIN OVER NICKEL

Number of Rows :

12 Row

Number of Positions Loaded :

All

Features :

-

Insulation Resistance :

1000000000 Ω

Contact Resistance :

10 MΩ

Pin Count :

120

Material Flammability Rating :

UL94 V-0

Contact Gender :

Male

Reliability :

COMMERCIAL

Number of Columns :

10

RoHS :

Details

Termination Type :

Press Fit

Reach Compliance Code :

Compliant

Termination Method :

Press Fit

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Connector Type :

Header, Male Pins

Product Status :

Active

Insertion Force-Max :

.3336 N

Number of Contacts :

120(POS)

Product Length (mm) :

18.9(mm)

Contact Plating :

Gold

Product Depth (mm) :

20.8(mm)

Contact Pattern :

RECTANGULAR

Current Rating (Max) :

0.75/Contact(A)

PCB Contact Pattern :

RECTANGULAR

Mounting Angle :

Vertical

Total Number of Contacts :

120

Pitch (mm) :

1.9(mm)

Housing Color :

Black

Mating Contact Row Spacing :

0.053 inch

Minimum Operating Temperature :

- 55 C

Withdrawl Force-Min :

.14734 N

Mounting :

Through Hole

Voltage Rating :

30 V

Body Depth :

0.47 inch

Contact Finish Thickness :

30.0µin (0.76µm)

ECCN Code :

EAR99

Plating Thickness :

30u inch

Body Orientation :

Straight

HTS Code :

8536.69.40.40

Contact Layout, Typical :

40 Differential Pairs

Termination :

Press-Fit

Operating Temperature :

-55 to 85 °C

Packaging :

Tray

Number Of PCB Rows :

12

Maximum Operating Temperature :

+ 85 C

Dielectric Withstanding Voltage :

500VAC V

Connector Style :

Impact

Durability :

200 Cycles
