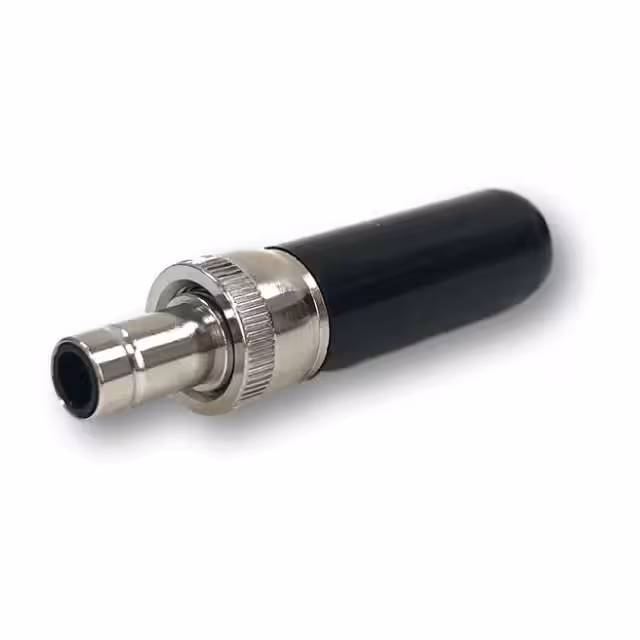

761KHZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Gender :

PL

Itar Registered :

Unavailable

Body Material :

Brass

Shielding :

Unshielded

Operating Temperature :

-

Includes :

-

Packaging :

Bulk

Contact Material - Plating :

Tin

Thread Size :

-

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Current Rating (Amps) :

7.5 A

Termination Method :

Solder

Contact Plating :

Nickel

Type :

DC Power

Maximum Operating Temperature :

+ 105 C

Package :

Bulk

Body Color :

Silver, Black

Body Orientation :

Straight

Mating Length/Depth :

0.476 (12.10mm)

Termination Style :

Solder

Number of Contacts :

2(POS)

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Product :

Plugs

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Product Depth (mm) :

Not Required(mm)

Voltage - Rated :

24VDC

Mounting Type :

Free Hanging (In-Line)

Internal Switch(s) :

Does Not Contain Switch

Current Rating :

7.5 A

Features :

Cable Clamp, Thread Lock

Product Diameter (mm) :

9.5(mm)

Number of Ports :

1(Port)

Connector Type :

PLUG

Material Flammability Rating :

-

IP Rating :

-

Voltage Rating Max :

24VDC

Mounting Angle :

Straight

Mounting Feature :

-

Pin Diameter :

-

Series :

-

Number of Terminals :

2

Inside Contact Diameter :

2.5 mm

Insulation Color :

Black

Outside Contact Diameter :

5.5 mm

RoHS :

Details

Housing Material :

Thermoplastic (TP)

Product Height (mm) :

Not Required(mm)

Termination :

Solder Eyelet(s)

Ingress Protection :

-

Product Length (mm) :

45.7(mm)

Product Status :

Active

Voltage Rating :

24 VDC

Contact Material :

COPPER ALLOY

Mounting Style :

CABLE

Current Rating (Max) :

7.5(A)

ECCN :

EAR99
