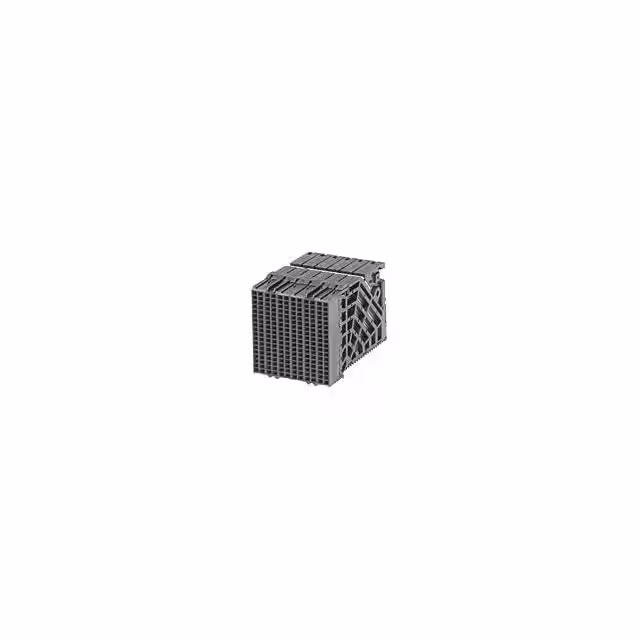

76290-1022
Or copy the link below:
- Mfr.Part #
- 76290-1022
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- IMPACT ORTHO DC 6X12 OPEN SN
- Stock
- 1,560
- In Stock ：
- 1,560
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Filter Feature :
- No
- Base/Housing Material :
- Thermoplastic
- Subcategory :
- Backplane Connectors
- Packaging :
- Tray
- Total Number of Contacts :
- 144
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Color :
- Black
- Pitch (mm) :
- 1.9(mm)
- Product :
- Receptacles
- Mounting Angle :
- RIGHT ANGLE
- Number of Contact Rows :
- 18
- Contact Layout, Typical :
- 72 Differential Pairs
- JESD-609 Code :
- e3
- Current Rating (Max) :
- 0.75/Contact(A)
- Type :
- Backplane
- Termination Method :
- Solder
- Number of Contacts :
- 216(POS)
- Product Status :
- Active
- Mounting Type :
- BOARD
- Product Depth (mm) :
- 37.3(mm)
- Pbfree Code :
- yes
- IEC Conformance :
- No
- Number of Columns :
- 12
- Reach Compliance Code :
- Compliant
- Housing Color :
- Black
- Contact Finish :
- Gold
- Maximum Operating Temperature :
- + 85 C
- DIN Conformance :
- No
- Product Length (mm) :
- 24.3(mm)
- Housing Material :
- Thermoplastic
- Brand :
- Molex
- Package :
- Box
- UL Flammability Code :
- 94V-0
- Connector Style :
- Impact
- Body Orientation :
- RIGHT ANGLE
- Contact Gender :
- FEMALE
- Number of Positions :
- 216 Position
- Gender :
- Receptacle
- Factory Lead Time :
- 5 Weeks
- Number of Rows :
- 18 Row
- Contact Plating :
- Gold
- Pitch :
- 1.9000 mm
- Operating Temperature :
- -55 to 85 °C
- MIL Conformance :
- No
- Voltage Rating Max :
- 30VDC/30VAC
- Product Height (mm) :
- 27.1(mm)
- Number of Positions Loaded :
- All
- Voltage Rating :
- 30 V
- Mounting Style :
- RIGHT ANGLE
- Mixed Contacts :
- No
- Operating Temp Range :
- -55C to 85C
- Series :
- 76290
- Termination :
- Press-Fit
- Contact Finish Termination :
- Tin (Sn) - with Nickel (Ni) barrier
- Features :
- -
- Current Rating :
- 750 mA
- Accessory Type :
- -
- Product Category :
- High Speed / Modular Connectors
- Tradename :
- Impact
- Termination Type :
- Press Fit
- Minimum Operating Temperature :
- - 55 C
- RoHS :
- Details
- Connector Usage :
- -
- Termination Style :
- Press Fit
- Option :
- GENERAL PURPOSE
- Mounting :
- Through Hole
- Product Type :
- High Speed / Modular Connectors
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Current Rating (Amps) :
- -
- Connector Type :
- BOARD CONNECTOR
- Datasheets
- 76290-1022
