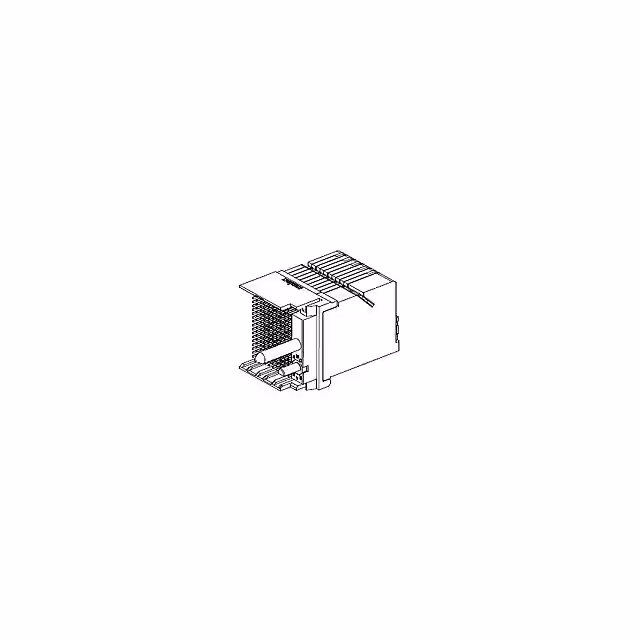

76560-5108

Manufacturer :

Molex

Product Category :

Specialized

Mounting :

Through Hole

Material Flammability Rating :

UL94 V-0

Contact Finish :

Gold

Number of Columns :

10

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Operating Temp Range :

-55C to 85C

Minimum Operating Temperature :

- 55 C

Number of Positions :

180 Position

HTS Code :

8536.69.40.40

Product Depth (mm) :

58.5(mm)

Packaging :

Tray

Pin Count :

180

Type :

Backplane

Tradename :

Impact

Color :

Black

Contact Plating :

Gold

Series :

76560

Product Length (mm) :

26.6(mm)

Factory Lead Time :

11 Weeks

Reach Compliance Code :

Compliant

Contact Material :

Tin

Package :

Box

Pitch (mm) :

1.9(mm)

Termination Style :

Through Hole

Current Rating (Amps) :

-

Connector Style :

Impact, Guide Right

ECCN Code :

EAR99

Number of Rows :

18 Row

Features :

-

Termination Method :

Press Fit

Number of Positions Loaded :

All

Contact Layout, Typical :

60 Differential Pairs

Body Orientation :

RIGHT ANGLE

Product Height (mm) :

28.8(mm)

Product Length :

26.6 mm

Contact Finish Thickness :

30.0µin (0.76µm)

RoHS :

Details

Voltage Rating Max :

30VDC/30VAC

Mounting Type :

Board Edge, Through Hole, Right Angle

Voltage Rating :

30 V

Connector Type :

Header, Male Pins

Number of Contacts :

180(POS)

Termination :

Press-Fit

Number of Contact Rows :

18

Mounting Style :

Through Hole

Current Rating :

750 mA

Pitch :

1.9 mm

Gender :

Header

Maximum Operating Temperature :

+ 85 C

Mounting Angle :

RIGHT ANGLE

Housing Color :

Black

Operating Temperature :

-55 to 85 °C

Product Status :

Active

Connector Usage :

-

Current Rating (Max) :

0.75/Contact(A)
