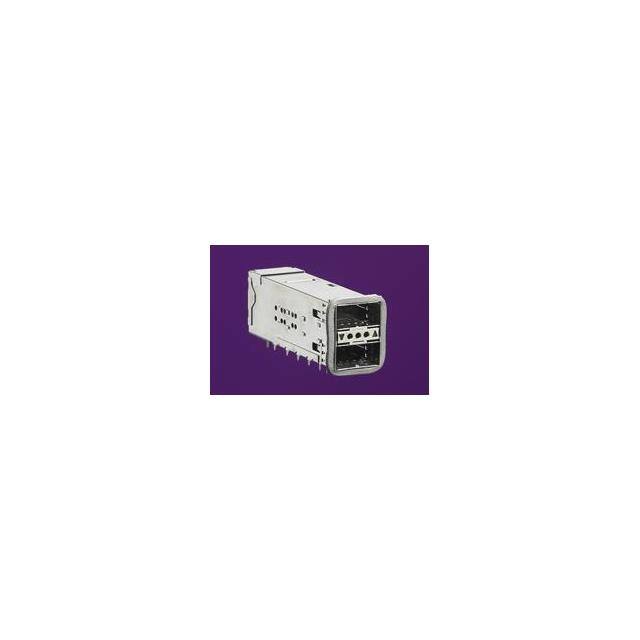

76871-1301
Or copy the link below:
- Mfr.Part #
- 76871-1301
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 2X1 QSFP+ HEAT SINK CAGE ASSY NO
- Stock
- 810
- In Stock ：
- 810
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Unclassified
- Product Length (mm) :
- 21.37(mm)
- Reach Compliance Code :
- Compliant
- Series :
- *
- Application :
- Module-to-Board
- Connector Type :
- TELECOM AND DATACOM CONNECTOR
- Pin Count :
- 76
- Number of Terminals :
- 76
- Orientation :
- RIGHT ANGLE
- Panel Mount :
- No
- Product Height (mm) :
- 24.9(mm)
- Product Depth (mm) :
- 73.3(mm)
- Positions Loaded :
- 76
- Current Rating (Max) :
- 0.5/Contact(A)
- Gender :
- FEMALE
- Mounting Style :
- Through Hole
- Product Length :
- 21.37 mm
- Contact Material :
- COPPER ALLOY
- Component Type :
- Receptacle
- Type :
- QSFP
- Number of Ports :
- 2(Port)
- ECCN Code :
- EAR99
- Product Status :
- Active
- Shielded :
- yes
- Package :
- Box
- Base/Housing Material :
- Thermoplastic
- Pitch (mm) :
- 0.8(mm)
- Mounting :
- Through Hole
- Housing Color :
- Black
- Operating Temp Range :
- -40C to 85C
- Voltage Rating Max :
- 120VDC/120VAC
- Family :
- 76871
- Body Orientation :
- RIGHT ANGLE
- Number of Contacts :
- 76(POS)
- HTS Code :
- 8536.69.40.30
- Contact Resistance Max :
- 10(mohm)
- Operating Temperature :
- -40 to 85 °C
- Termination Method :
- Press Fit
- Pitch :
- 0.8000 mm
- Manufacturer :
- Molex
- Contact Plating :
- Gold Over Nickel
- Packaging :
- Tray
- Datasheets
- 76871-1301
76871-1301 datasheet pdf and Barrel - Audio Connectors product details from Molex stock available at
