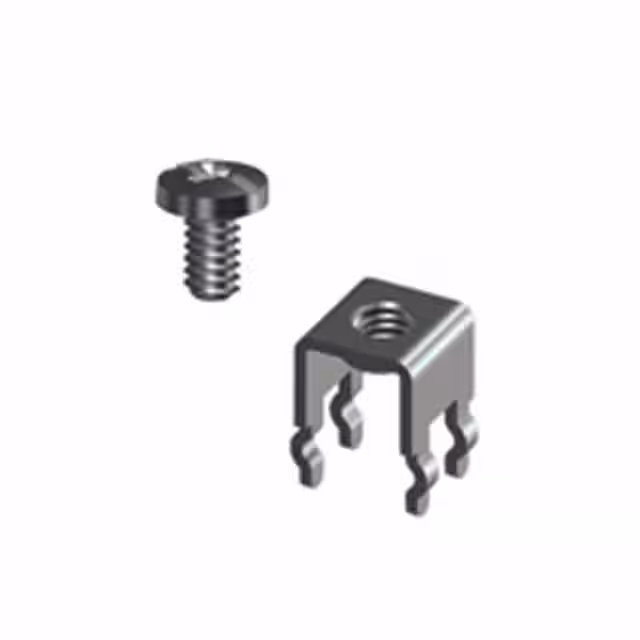

7691-2

Manufacturer :

Keystone Electronics Corp.

Product Category :

Screw Connectors

Packaging :

Box

Width :

30

Wire Gauge or Range - AWG :

12-28 AWG

Rad Hardened :

No

Number of Positions :

6 (Mate), 12 (Input)

Product Status :

Active

Transparent :

No

Insulation Height :

1.413 (35.89mm)

Number of Levels :

1 (Mate), 2 (Input)

Rated current In :

32

Voltage - IEC :

500 V

Wire Strip Length :

8-9mm

Length :

35.9

Contact Material :

Copper

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Torque - Screw :

-

Inflammability class of insulation material according to with UL94 :

V0

Height :

35.9

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connectable conductor cross section multi-wired :

0.08 - 4

PPAP :

No

Screw Size :

-

Number of Ports :

6

Depth :

45.2

Header Orientation :

-

Connectable conductor cross section solid-core :

0.08 - 4

Termination Style :

Screwless - Push-In Spring

Housing Material :

Polyamide

EU RoHS :

Compliant

Positions Per Level :

6 (Mate), 12 (Input)

Approvals :

CCA;CSA;UL

ECCN (US) :

EAR99

Manufacturer :

Wago

Current - IEC :

32A

Pitch :

0.197 (5.00mm)

Contact Mating Finish :

-

Series :

X-COM®

Type :

Plug, Female Sockets

Automotive :

No

Features :

Retention Latches (Non-Wire Side)

Package :

Box

Color :

Gray

Wire Type :

Solid Wire;Stranded Wire

Ingress Protection :

-

Contact Tail Length :

-

HTS :

8536.69.40.40

Operating Temperature :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Mounting Type :

Free Hanging (In-Line)

Plug Wire Entry :

180°

Material Flammability Rating :

UL94 V-0
