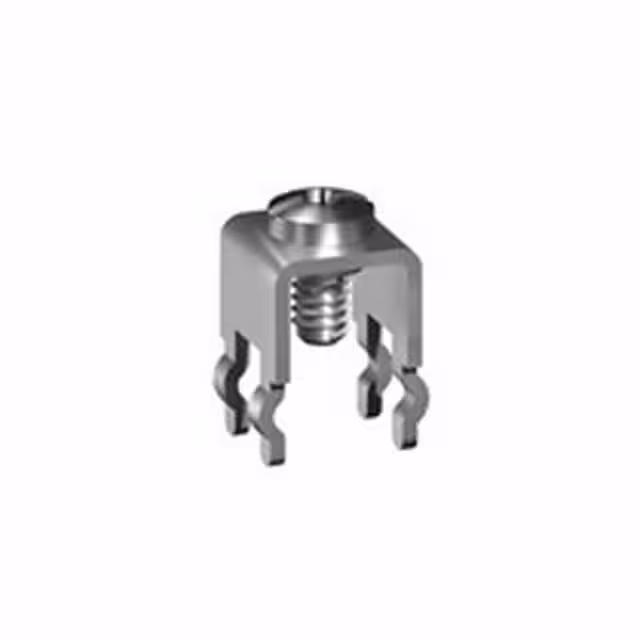

7696-3

Manufacturer :

Keystone Electronics Corp.

Product Category :

Screw Connectors

Positions Per Level :

4

Inflammability class of insulation material according to with UL94 :

V0

Housing Material :

Polyamide (PA66), Nylon 6/6

Torque - Screw :

-

Rated current In :

32

Wire Gauge or Range - AWG :

-

Temperature Range :

-76 to 221 Degrees F

Pitch :

0.197 (5.00mm)

Features :

Locking Ramp

Number of Poles :

4

Type of electric connection :

Soldering connection

Contact Mating Finish :

-

Type :

Header, Male Pins, Shrouded (4 Side)

Color :

Gray

Plug Wire Entry :

-

Operating Temperature :

-

RoHS :

yes

Series :

X-COM®

Packaging type :

Carton (box)

Type of fastening :

Solder

Number of Positions :

4

Manufacturer :

Wago

Rated surge voltage :

4

Material of contact surface :

Tin

Pollution degree :

3

Wire Gauge or Range - mm² :

-

Product Status :

Active

Wire Strip Length :

-

Number of Levels :

1

Ingress Protection :

-

Composition :

Polyamide

Package :

Box

Screw Size :

-

Material Flammability Rating :

UL94 V-0

Current - IEC :

32A

Termination Style :

Solder

Contact Material :

-

Approvals :

CSA;UR

Insulation Height :

0.874 (22.20mm)

Mounting Type :

PCB Mount

Contact Tail Length :

0.142 (3.60mm)

Voltage - IEC :

500 V

Header Orientation :

Vertical
