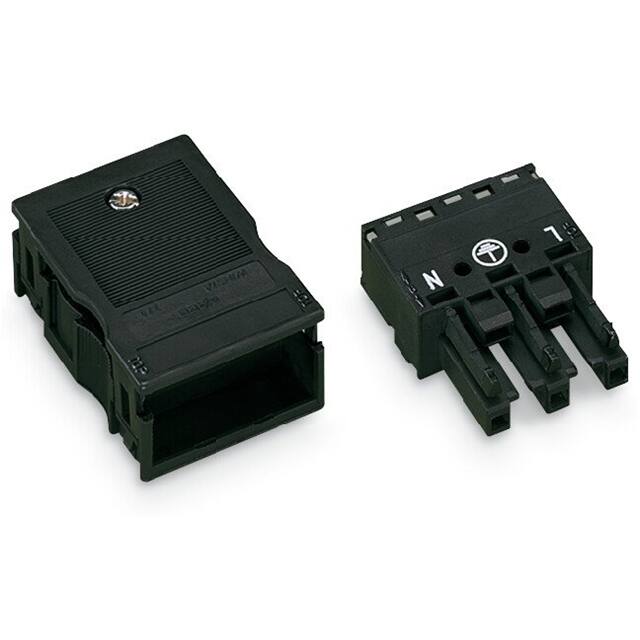

770-103

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Length :

76

Wire Type :

Solid Wire;Stranded Wire

Model :

Bus

Product Height (mm) :

15(mm)

Product Length (mm) :

34.6(mm)

Screw Size :

-

Pollution degree :

3

Positions Per Level :

3

Type :

Housing

Current - IEC :

25A

Height :

15

Contact Plating :

-

Wire Gauge or Range - mm² :

0.5-4mm²

Torque - Screw :

-

Ingress Protection :

-

Features :

Strain Relief

Insulation Height :

0.591 (15.00mm)

Plug Wire Entry :

180°

Pitch :

0.394 (10.00mm)

Material housing :

Polyamide (PA)

Packaging :

Box

Series :

WINSTA® MIDI

Manufacturer :

Wago

Locking mechanism :

Separate

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - AWG :

12-20 AWG

Body Orientation :

Straight

Material Flammability Rating :

UL94 V-0

Gender :

M

Number of Contact Rows :

1

With strain relief :

yes

Number of Contacts :

3(POS)

Wire Strip Length :

9mm

Pitch (mm) :

10(mm)

Termination Style :

Screwless - Push-In Spring

Voltage - IEC :

250 V

Housing Color :

Black

Contact Tail Length :

-

Voltage - UL :

600 V

Number of Positions :

3

Wire Gauge :

12-20(AWG)

Header Orientation :

-

Number of Ports :

3

Current - UL :

23 A

Contact Material :

-

Product Status :

Active

Operating Temperature :

-35°C ~ 85°C

Color :

Black

Width :

34.6

Approvals :

cURus

Contact Mating Finish :

-

Degree of protection (IP) :

IP20

Product Depth (mm) :

75.9(mm)

Package :

Box

Rated surge voltage :

4

Number of Levels :

1

Voltage Rating Max :

250V

Current Rating (Max) :

25(A)

Housing Material :

Polyamide
