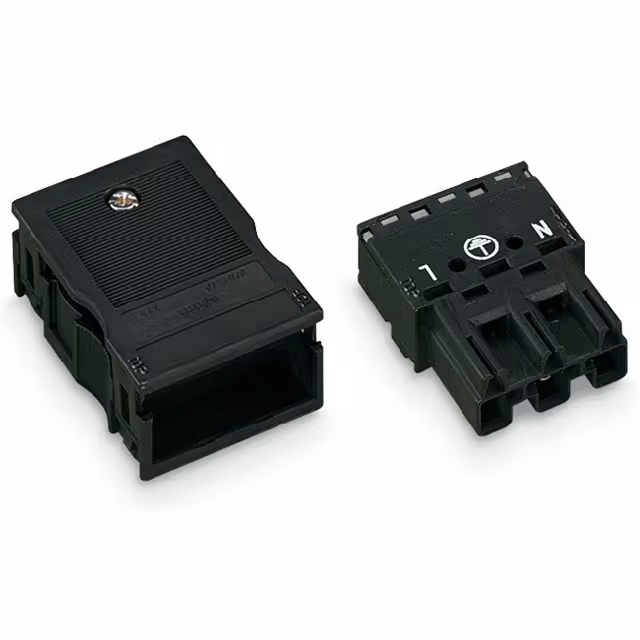

770-113

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Torque - Screw :

-

Product Status :

Active

Contact Mating Finish :

-

Ingress Protection :

-

Contact Material :

-

Number of Ports :

3

Wire Strip Length :

9mm

Voltage - IEC :

250 V

Series :

770

Strain Relief :

yes

Current Rating :

25A

Current - IEC :

25A

Voltage Rating :

250 V

Features :

Strain Relief

Wire Size :

0.5 → 4 mm²

Color :

Black

Voltage - UL :

600 V

Termination Style :

Screwless - Push-In Spring

Insulation Height :

0.591 (15.00mm)

Number of Positions :

3

Gender :

PLUG

Wire Gauge or Range - AWG :

12-20 AWG

Termination Method :

Clamp

Positions Per Level :

3

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyamide

Wire Gauge or Range - mm² :

0.5-4mm²

Contact Tail Length :

-

Header Orientation :

-

Plug Wire Entry :

180°

Approvals :

cURus

Pitch :

0.394 (10.00mm)

Type :

Connector

Operating Temperature :

-35°C ~ 85°C

Mounting Type :

Through Hole

Number of Levels :

1

Package :

Box

Screw Size :

-

Wire Type :

Solid Wire;Stranded Wire

Contact Plating :

-

Manufacturer :

Wago

Current - UL :

23 A
