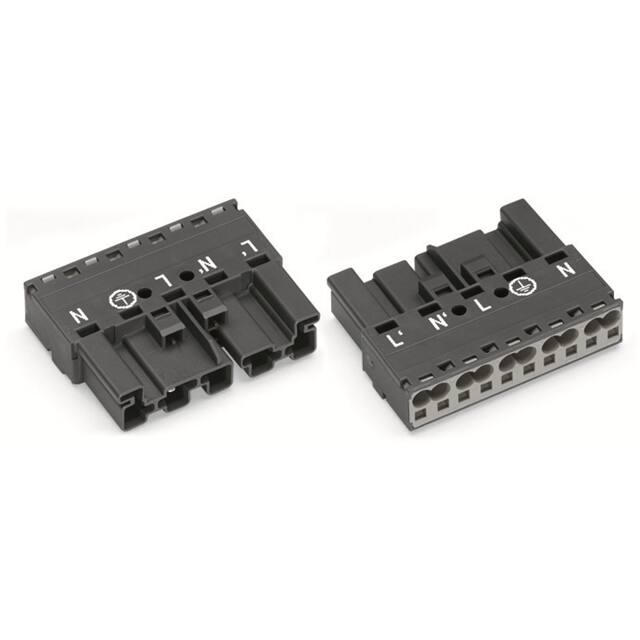

770-1175

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Current - UL :

23 A

Contact Tail Length :

-

Pollution degree :

3

Rated surge voltage :

6

Contact Mating Finish :

-

Ingress Protection :

-

Mounting Type :

Free Hanging (In-Line)

Header Orientation :

-

ECCN (US) :

EAR99

Material housing :

Polyamide (PA)

Type :

Plug, Male Pins

Voltage - UL :

600 V

Screw Size :

-

Current - IEC :

25A

Pitch :

0.394 (10.00mm)

Color :

Dark Gray

Locking mechanism :

Separate

Model :

PLUG

With strain relief :

No

Number of Ports :

5

EU RoHS :

Compliant

Termination Style :

Screwless - Push-In Spring

Series :

WINSTA® MIDI

PPAP :

No

Insulation Height :

0.508 (12.90mm)

Manufacturer :

Wago

Plug Wire Entry :

180°

Torque - Screw :

-

Material Flammability Rating :

UL94 V-0

Package :

Box

Number of Levels :

1

Length :

37.5

Width :

50

Positions Per Level :

5

Wire Strip Length :

9mm

Product Status :

Active

Housing Material :

Polyamide

Automotive :

No

Voltage - IEC :

250 V

Contact Material :

-

Height :

12.9

Wire Type :

Solid Wire;Stranded Wire

Wire Gauge or Range - AWG :

12-20 AWG

HTS :

8536.69.40.40

Features :

Retention Latches (Non-Wire Side)

Number of Positions :

5

Wire Gauge or Range - mm² :

0.5-4mm²

Degree of protection (IP) :

IP20

Operating Temperature :

-35°C ~ 85°C
