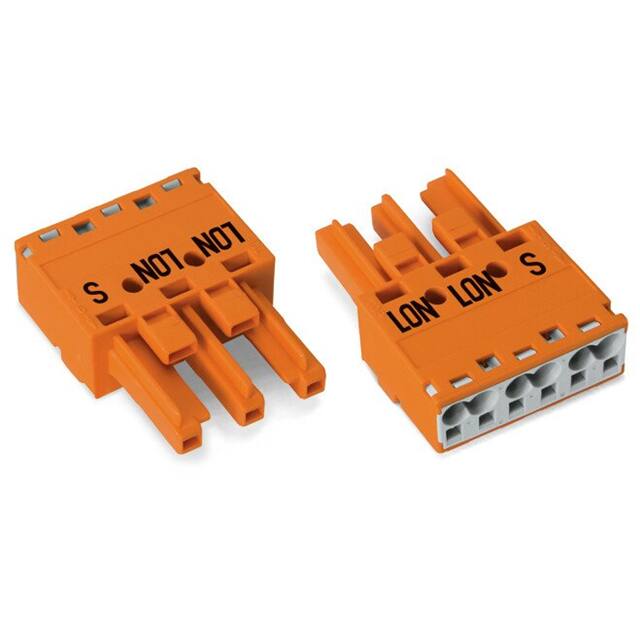

770-1343

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Degree of protection (IP) :

IP20

Header Orientation :

-

Wire Gauge or Range - mm² :

0.5-4mm²

Color :

Orange

Product Status :

Active

Automotive :

No

HTS :

8536.69.40.40

Approvals :

cURus

Length :

37.5

Positions Per Level :

3

Material housing :

Polyamide (PA)

Voltage - IEC :

250 V

Plug Wire Entry :

180°

Model :

Bus

Contact Material :

-

Manufacturer :

Wago

PPAP :

No

Features :

Retention Latches (Non-Wire Side)

Current - IEC :

25A

Ingress Protection :

-

EU RoHS :

Compliant

Material Flammability Rating :

UL94 V-0

Wire Strip Length :

9mm

Torque - Screw :

-

Rated surge voltage :

4

Voltage - UL :

600 V

Current - UL :

23 A

Series :

WINSTA® MIDI

Termination Style :

Screwless - Push-In Spring

Number of Levels :

1

With strain relief :

No

ECCN (US) :

EAR99

Screw Size :

-

Pollution degree :

3

Width :

30

Operating Temperature :

-35°C ~ 85°C

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide

Locking mechanism :

Separate

Package :

Box

Number of Ports :

3

Type :

Plug, Female Sockets

Pitch :

0.394 (10.00mm)

Contact Mating Finish :

-

Wire Gauge or Range - AWG :

12-20 AWG

Number of Positions :

3

Height :

12.9

Wire Type :

Solid Wire;Stranded Wire

Contact Tail Length :

-

Insulation Height :

0.508 (12.90mm)
