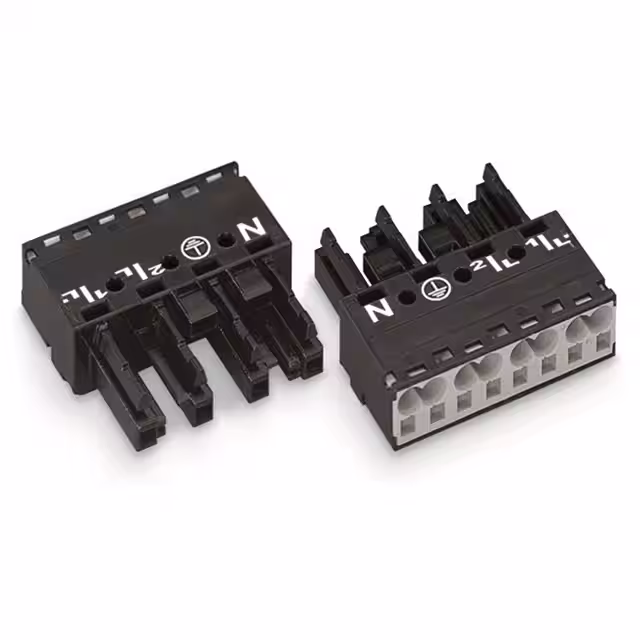

770-204

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Degree of protection (IP) :

IP20

Plug Wire Entry :

180°

Number of Positions :

4

Color :

Black

Contact Material :

-

Package :

Box

Type :

Plug, Female Sockets

Contact Mating Finish :

-

HTS :

8536.69.40.40

Automotive :

No

Material Flammability Rating :

UL94 V-0

Positions Per Level :

4

Voltage - IEC :

400 V

Termination Style :

Screwless - Push-In Spring

Material housing :

Polyamide (PA)

Wire Gauge or Range - AWG :

12-20 AWG

Ingress Protection :

-

Torque - Screw :

-

Rated surge voltage :

6

Series :

WINSTA® MIDI

Wire Gauge or Range - mm² :

0.5-4mm²

Housing Material :

Polyamide

Header Orientation :

-

ECCN (US) :

EAR99

Model :

Bus

PPAP :

No

Wire Strip Length :

9mm

Insulation Height :

0.508 (12.90mm)

Voltage - UL :

600 V

With strain relief :

No

Current - UL :

23 A

Number of Levels :

1

Approvals :

cURus

Height :

12.9

Operating Temperature :

-35°C ~ 85°C

Current - IEC :

25A

Width :

40

Locking mechanism :

Separate

Product Status :

Active

Contact Tail Length :

-

Wire Type :

Solid Wire;Stranded Wire

EU RoHS :

Compliant

Number of Ports :

4

Screw Size :

-

Manufacturer :

Wago

Features :

Locking Feature

Pollution degree :

3

Pitch :

0.394 (10.00mm)

Mounting Type :

Free Hanging (In-Line)

Length :

37.5
