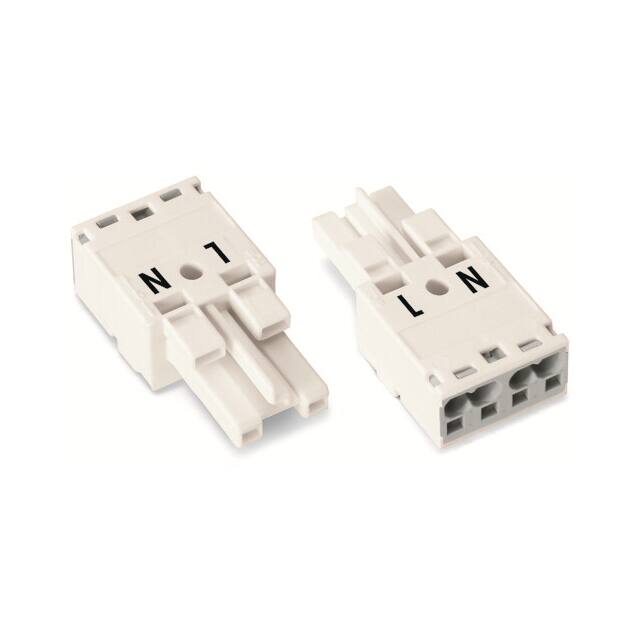

770-222

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Degree of protection (IP) :

IP20

Contact Material :

-

Contact Tail Length :

-

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.508 (12.90mm)

Ingress Protection :

-

Pitch :

0.394 (10.00mm)

Number of Ports :

2

Automotive :

No

Mounting Type :

Free Hanging (In-Line)

Number of Levels :

1

Positions Per Level :

2

Length :

37.5

Voltage - UL :

600 V

PPAP :

No

Contact Mating Finish :

-

Width :

20

Wire Strip Length :

9mm

With strain relief :

No

Series :

WINSTA® MIDI

Approvals :

cURus

HTS :

8536.69.40.40

Locking mechanism :

Separate

Current - UL :

23 A

Model :

Bus

Manufacturer :

Wago

Current - IEC :

25A

Number of Positions :

2

Operating Temperature :

-35°C ~ 85°C

Voltage - IEC :

250 V

EU RoHS :

Compliant

Plug Wire Entry :

180°

Torque - Screw :

-

Color :

White

Housing Material :

Polyamide

Material housing :

Polyamide (PA)

Rated surge voltage :

4

Header Orientation :

-

Wire Type :

Solid Wire;Stranded Wire

Termination Style :

Screwless - Push-In Spring

Product Status :

Active

Height :

12.9

ECCN (US) :

EAR99

Wire Gauge or Range - mm² :

0.5-4mm²

Type :

Plug, Female Sockets

Features :

Locking Feature

Package :

Box

Screw Size :

-

Pollution degree :

3

Wire Gauge or Range - AWG :

12-20 AWG
