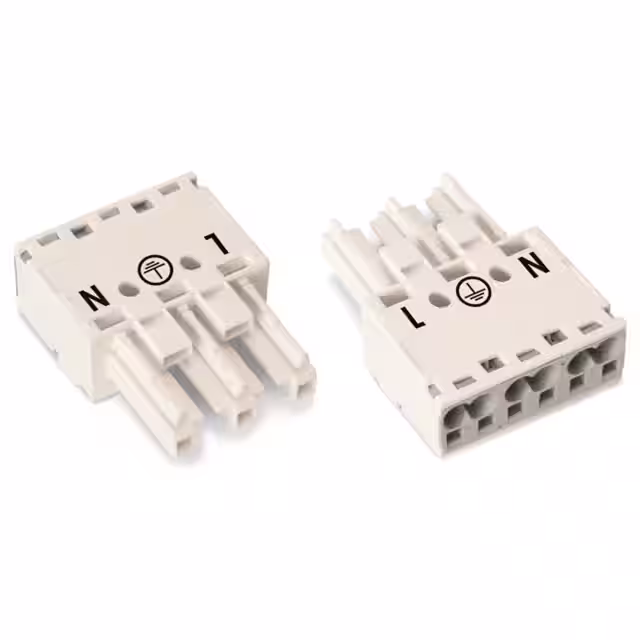

770-223

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Strip Length :

9mm

Automotive :

No

Wire Gauge or Range - mm² :

0.5-4mm²

Ingress Protection :

-

Features :

Locking Feature

Current - UL :

23 A

Locking mechanism :

Separate

Material housing :

Polyamide (PA)

Mounting Type :

Free Hanging (In-Line)

Approvals :

cURus

Insulation Height :

0.508 (12.90mm)

With strain relief :

No

Contact Mating Finish :

-

Voltage - IEC :

250 V

Number of Levels :

1

Wire Type :

Solid Wire;Stranded Wire

Number of Ports :

3

Material Flammability Rating :

UL94 V-0

Degree of protection (IP) :

IP20

Contact Material :

-

Contact Tail Length :

-

Termination Style :

Screwless - Push-In Spring

Torque - Screw :

-

Series :

WINSTA® MIDI

Screw Size :

-

PPAP :

No

Operating Temperature :

-35°C ~ 85°C

Product Status :

Active

Rated surge voltage :

4

Width :

30

EU RoHS :

Compliant

Color :

White

Header Orientation :

-

Wire Gauge or Range - AWG :

12-20 AWG

Model :

Bus

Pitch :

0.394 (10.00mm)

Number of Positions :

3

HTS :

8536.69.40.40

Voltage - UL :

600 V

Type :

Plug, Female Sockets

Package :

Box

Positions Per Level :

3

Height :

12.9

Pollution degree :

3

Housing Material :

Polyamide

Length :

37.5

Current - IEC :

25A

Manufacturer :

Wago

ECCN (US) :

EAR99

Plug Wire Entry :

180°
