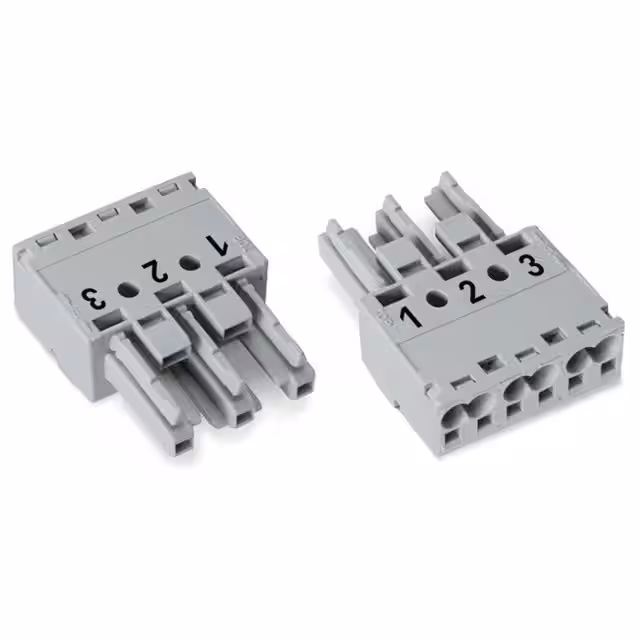

770-243

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Product Status :

Active

Number of Positions :

3

Rated Voltage :

250V

Automotive :

No

Voltage - UL :

600 V

With strain relief :

No

Product Height (mm) :

37.5

Packaging :

Box

Number of Rows :

1

HTS :

8536.69.40.40

Body Orientation :

Straight

PPAP :

No

Model :

Bus

Header Orientation :

-

Wire Strip Length :

9mm

Product Depth (mm) :

12.9

Width :

30

Features :

Locking Feature

Plug Wire Entry :

180°

Degree of protection (IP) :

IP20

Approvals :

cURus

Housing Color :

Gray

Locking mechanism :

Separate

ECCN (US) :

EAR99

Height :

12.9

Manufacturer :

Wago

Number of Levels :

1

Length :

37.5

Wire Size (AWG) :

20AWG to 12AWG

Wire Gauge or Range - mm² :

0.5-4mm²

Material Flammability Rating :

UL94 V-0

EU RoHS :

Compliant

Type :

Terminal Block

Termination Method :

Clamp

Rated surge voltage :

4

Current - IEC :

25A

Insulation Height :

0.508 (12.90mm)

Terminal Pitch (mm) :

10

Contact Material :

-

Torque - Screw :

-

Pollution degree :

3

Number of Circuits :

3

Voltage - IEC :

250 V

Minimum Operating Temperature (°C) :

-35

Operating Temperature :

-35°C ~ 85°C

Number of Ports :

3

Termination Style :

Screwless - Spring Cage, Tension Clamp

Screw Size :

-

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.394 (10.00mm)

Maximum Current Rating (A) :

23

Mounting :

Cable Mount

Contact Mating Finish :

-

Wire Type :

Solid Wire;Stranded Wire

Current - UL :

23 A

Product Length (mm) :

30

Gender :

SKT

Wire Gauge or Range - AWG :

12-20 AWG

Tradename :

CAGE CLAMP?

Housing Material :

Polyamide

Material housing :

Polyamide (PA)

Rated Current :

25A

Maximum Voltage Rating :

600V

Ingress Protection :

-

Maximum Operating Temperature (°C) :

85

Positions Per Level :

3

Contact Tail Length :

-

Color :

Gray

Number of Contacts :

3
