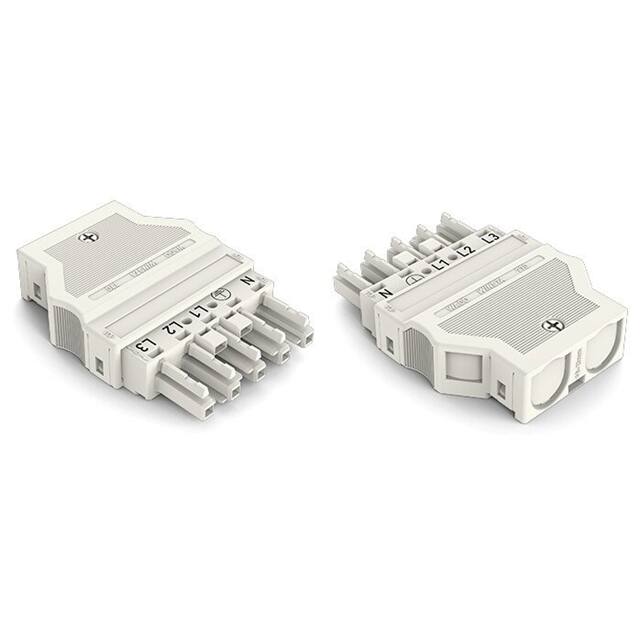

770-325

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Locking mechanism :

Separate

Torque - Screw :

-

Pollution degree :

3

Rated surge voltage :

6

Wire Gauge or Range - AWG :

12-20 AWG

Pitch :

0.394 (10.00mm)

Approvals :

cURus

Number of Ports :

5

Number of Levels :

1

Color :

White

Contact Material :

-

Automotive :

No

Screw Size :

-

Current - UL :

23 A

Type :

Plug, Female Sockets

Length :

76

Voltage - IEC :

400 V

Contact Tail Length :

-

Operating Temperature :

-35°C ~ 85°C

Product Status :

Active

Housing Material :

Polyamide

Height :

17

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.5-4mm²

Voltage - UL :

600 V

Termination Style :

Screwless - Push-In Spring

Header Orientation :

-

Wire Strip Length :

9mm

Manufacturer :

Wago

Material housing :

Polyamide (PA)

Contact Mating Finish :

-

HTS :

8536.69.40.40

Width :

54.6

Features :

Locking Feature

Insulation Height :

0.669 (17.00mm)

With strain relief :

yes

Degree of protection (IP) :

IP20

Plug Wire Entry :

180°

EU RoHS :

Compliant

Ingress Protection :

-

Mounting Type :

Free Hanging (In-Line)

Positions Per Level :

5

Number of Positions :

5

PPAP :

No

ECCN (US) :

EAR99

Wire Type :

Solid Wire;Stranded Wire

Current - IEC :

25A

Model :

Bus
