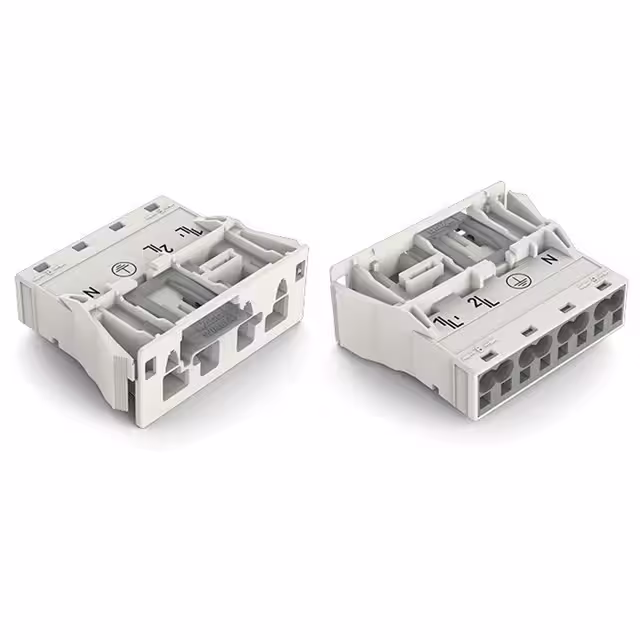

770-734

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Approvals :

cURus

Termination Style :

Screwless - Spring Cage, Tension Clamp

Color :

White

Wire Gauge or Range - AWG :

12-20 AWG

Current - UL :

23 A

Pitch :

0.394 (10.00mm)

Wire Strip Length :

9mm

Wire Type :

Solid Wire;Stranded Wire

Voltage - UL :

600 V

Housing Material :

Polyamide

Features :

Lever Actuated

Insulation Height :

0.728 (18.50mm)

Positions Per Level :

4

Screw Size :

-

Number of Ports :

4

Material Flammability Rating :

UL94 V-0

Current - IEC :

25A

Ingress Protection :

-

Number of Positions :

4

Mounting Type :

Panel Mount, Snap-In

Torque - Screw :

-

Wire Gauge or Range - mm² :

0.5-4mm²

Product Status :

Active

Contact Material :

-

Number of Levels :

1

Voltage - IEC :

400 V

Contact Tail Length :

-

Package :

Box

Type :

Plug, Male Pins

Plug Wire Entry :

180°

Manufacturer :

Wago

Series :

WINSTA® MIDI

Header Orientation :

-

Operating Temperature :

-35°C ~ 85°C

Contact Mating Finish :

-
