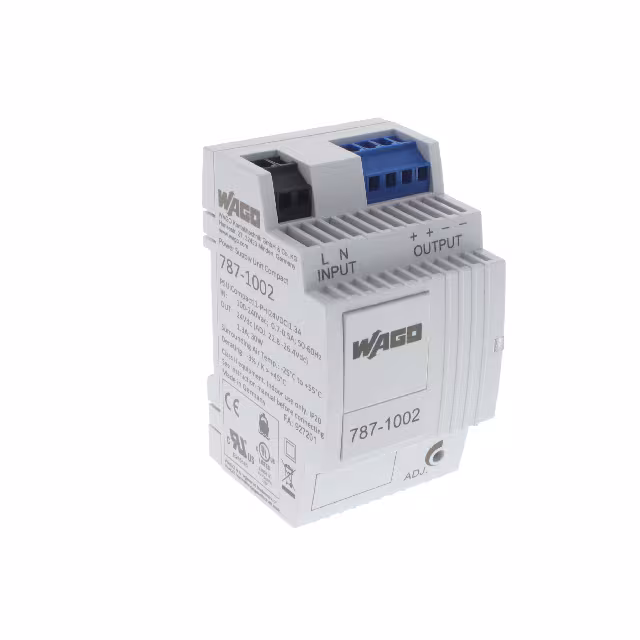

787-1002

Manufacturer :

WAGO

Product Category :

Output voltage (max.) :

26.4V DC

Degree of protection (IP) :

IP20

Input voltage (max.) :

264V AC

Depth :

89mm

Size / Dimension :

2.32 L x 2.13 W x 3.50 H (59.0mm x 54.0mm x 89.0mm)

Current - Output (Max) :

1.3A

Approvals :

UL508, UL60950

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

No. of outputs :

2x

Voltage - Output 6 :

-

Product Status :

Active

Voltage type of supply voltage :

AC/DC

Number of Outputs :

1

Modular version :

No

Voltage - Output 1 :

24V

Operating Temperature :

-13-140 °F

Connections :

Wago 740

Width :

54mm

Output current (max.) - rounded :

1.3A

Applications :

Industrial, ITE (Commercial)

Power Factor Correction :

yes

Manufacturer :

Wago

Power (Watts) :

31W

RoHS :

yes

Features :

Adjustable Output, IP20, PFC, Universal Input

Dim :

(W x H x D) 54 x 59 x 89 mm

Output current (details) :

1.3 A at DC 24 VMax 0.9 A at any mounting position

Mounting :

DIN Rail

Output voltage (nominal) :

24V dc

Type :

EPSITRON® COMPACT POWER 787-1002

Package :

Bulk

Voltage - Output 5 :

-

Voltage - Output 3 :

-

Max. output current :

1.3A

Voltage - Output 2 :

-

Base Product Number :

787-10

Approval Agency :

cURus, UL

Type of electric connection :

Spring clamp connection

Content :

1pc(s)

Voltage - Output 4 :

-

Standard Number :

60950-1; UL 508

Input Frequency :

44-66 Hz

Rail mounting possible :

yes

Min. input voltage :

85V AC

Output Current :

1.3 A

Weight :

170g

Output voltage (min.) :

22.8V DC

Height :

59mm

Voltage - Isolation :

4.242 kV

Manufacturer part # :

787-1002

Minimum Load Required :

-

Overload Protection :

yes

Input Type :

AC or DC

Efficiency :

82%

Suitable for safety functions :

No

Power :

31.2W

Series :

-

Connection :

Spring-loaded terminal
