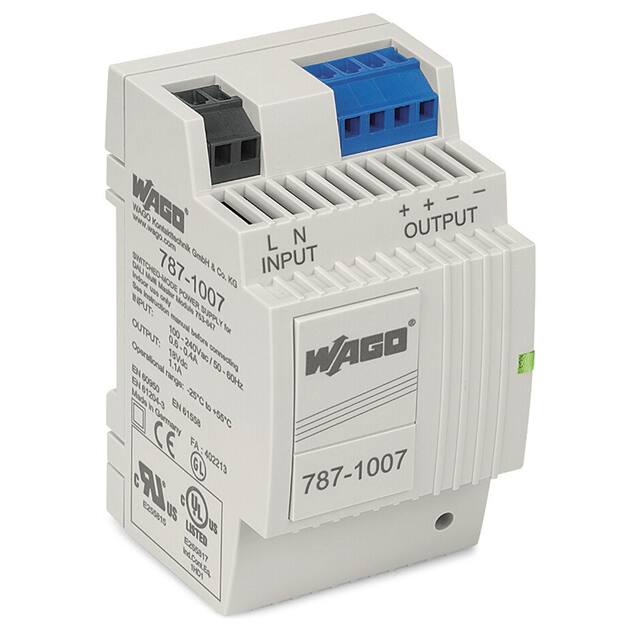

787-1007

Manufacturer :

WAGO

Product Category :

Overload Protection :

No

Height :

59

Mounting :

DIN Rail

Suitable for safety functions :

No

Efficiency :

85%

Power :

19.8 W

Voltage type of supply voltage :

AC/DC

Voltage - Output 3 :

-

Applications :

Industrial, ITE (Commercial), Laboratory

RoHS :

yes

Voltage - Isolation :

4.242 kV

Depth :

89

Output Current :

1.1 A

Number of Outputs :

1

Rail mounting possible :

yes

Operating Temperature :

-13-140 °F

Modular version :

No

Manufacturer :

Wago

Series :

-

Voltage - Output 1 :

18V

Minimum Load Required :

-

Size / Dimension :

2.17 L x 2.13 W x 3.50 H (55.0mm x 54.0mm x 89.0mm)

Degree of protection (IP) :

IP20

Input Type :

AC or DC

Type of electric connection :

Spring clamp connection

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Package :

Box

Voltage - Output 2 :

-

Voltage - Output 4 :

-

Product Status :

Active

Features :

IP20, Universal Input

Approvals :

UL508, UL60950

Standard Number :

60950-1; 61010-1; UL 508

Current - Output (Max) :

1.1A

Width :

54

Voltage - Output 6 :

-

Power (Watts) :

20W

Input Frequency :

45-65 Hz

Voltage - Output 5 :

-

Power Factor Correction :

yes

Approval Agency :

cURus, EAC, UL
