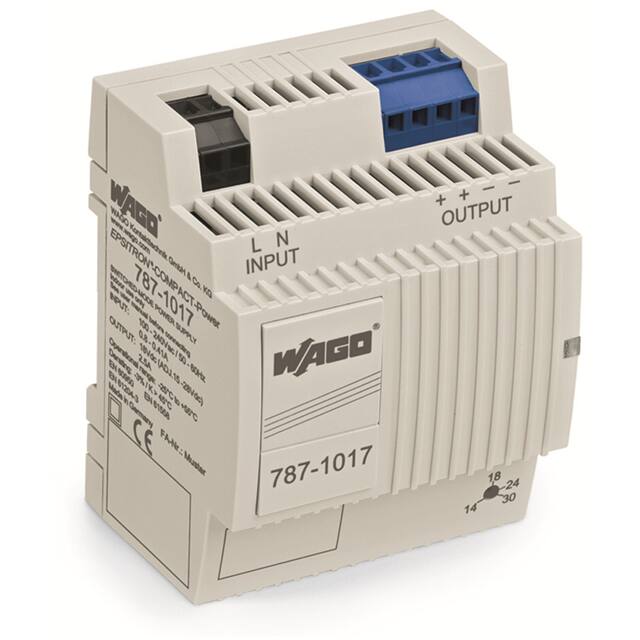

787-1017

Manufacturer :

WAGO

Product Category :

Connection :

Spring-loaded terminal

Package :

Box

Input voltage (max.) :

264V AC

Voltage - Isolation :

4.242 kV

Approvals :

UL508, UL60950

Series :

-

Input Frequency :

44-66 Hz

Manufacturer part # :

787-1017

Minimum Load Required :

-

No. of outputs :

1x

Power :

43 W

Output voltage (nominal) :

18V DC

Standard Number :

60950-1

Output Current :

2.4 A, 2 A

Voltage - Output 1 :

18V

Weight :

250g

Output current (max.) - rounded :

2.4A

Current - Output (Max) :

2.5A

Number of Outputs :

1

Output voltage (max.) :

28V DC

Operating Temperature :

-13-140 °F

Max. output current :

2.4A

Min. input voltage :

85V AC

Width :

72mm

Output voltage (min.) :

15V dc

Power Factor Correction :

yes

Voltage - Output 3 :

-

Efficiency :

84%

Content :

1pc(s)

Degree of protection (IP) :

IP20

Dim :

(W x H x D) 72 x 89 x 59 mm

Applications :

ITE (Commercial)

Rail mounting possible :

yes

Mounting :

DIN Rail

Size / Dimension :

2.32 L x 2.83 W x 3.50 H (59.0mm x 72.0mm x 89.0mm)

Voltage - Output 5 :

-

Manufacturer :

Wago

Type of electric connection :

Spring clamp connection

Voltage - Output 6 :

-

Voltage - Output 2 :

-

RoHS :

yes

Type :

EPSITRON® COMPACT POWER 787-1017

Modular version :

No

Depth :

59mm

Product Status :

Active

Voltage type of supply voltage :

AC/DC

Input Type :

AC or DC

Suitable for safety functions :

No

Voltage - Output 4 :

-

Overload Protection :

yes

Output current (details) :

2.4A

Power (Watts) :

43W

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Features :

Adjustable Output, IP20, PFC, Universal Input

Height :

89mm

Approval Agency :

cURus, UL
