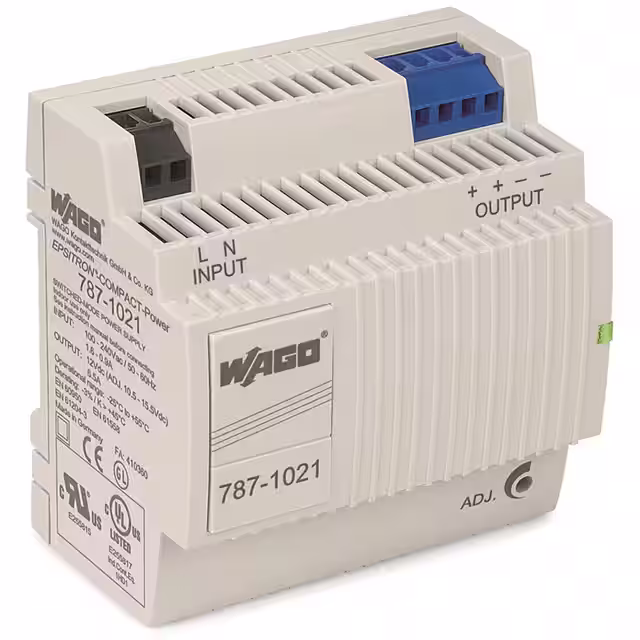

787-1021

Manufacturer :

WAGO

Product Category :

Type :

EPSITRON® COMPACT POWER 787-1021

Voltage - Output 4 :

-

Voltage - Output 5 :

-

Output Current :

6.5 A

Features :

Adjustable Output, IP20, PFC, Universal Input

Size / Dimension :

2.17 L x 3.54 W x 3.50 H (55.0mm x 90.0mm x 89.0mm)

Input Type :

AC or DC

Nominal Input Voltage (AC) :

120 VAC, 240 VAC

Depth :

59mm

Applications :

Industrial, ITE (Commercial), Laboratory

Input Frequency :

47-63 Hz

Suitable for safety functions :

No

Voltage - Output 1 :

12V

Approval Agency :

cURus, EAC, UL

Input voltage (max.) :

264V AC

Min. input voltage :

85V AC

Output voltage (max.) :

15.5V DC

Operating Temperature :

-13-140 °F

Product Status :

Active

Power :

78W

Degree of protection (IP) :

IP20

RoHS :

yes

Package :

Box

Power Factor Correction :

yes

Series :

-

Number of Outputs :

1

Current - Output (Max) :

6.5A

Max. output current :

6.5A

Rail mounting possible :

yes

Height :

89mm

Voltage - Output 2 :

-

Dim :

(W x H x D) 90 x 89 x 59 mm

Connection :

Spring-loaded terminal

Standard Number :

60950-1; 61010-1; UL 508

No. of outputs :

1x

Modular version :

No

Weight :

300g

Efficiency :

87%

Output current (details) :

6.5A

Voltage - Isolation :

4.242 kV

Content :

1pc(s)

Overload Protection :

yes

Power (Watts) :

78W

Manufacturer :

Wago

Voltage type of supply voltage :

AC/DC

Output voltage (nominal) :

12V DC

Approvals :

UL508, UL60950

Manufacturer part # :

787-1021

Type of electric connection :

Spring clamp connection

Minimum Load Required :

-

Mounting :

DIN Rail

Width :

90mm

Voltage - Output 3 :

-

Voltage - Output 6 :

-

Output current (max.) - rounded :

6.5A

Output voltage (min.) :

10.5V DC
